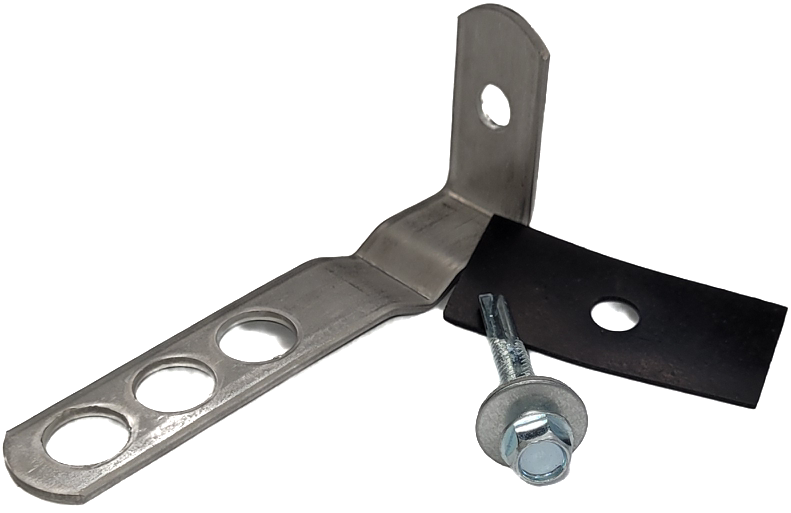

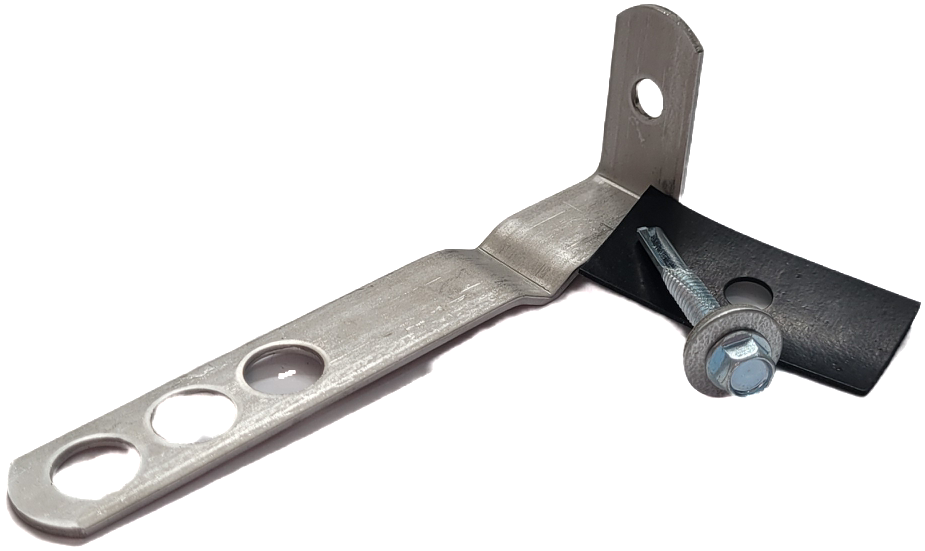

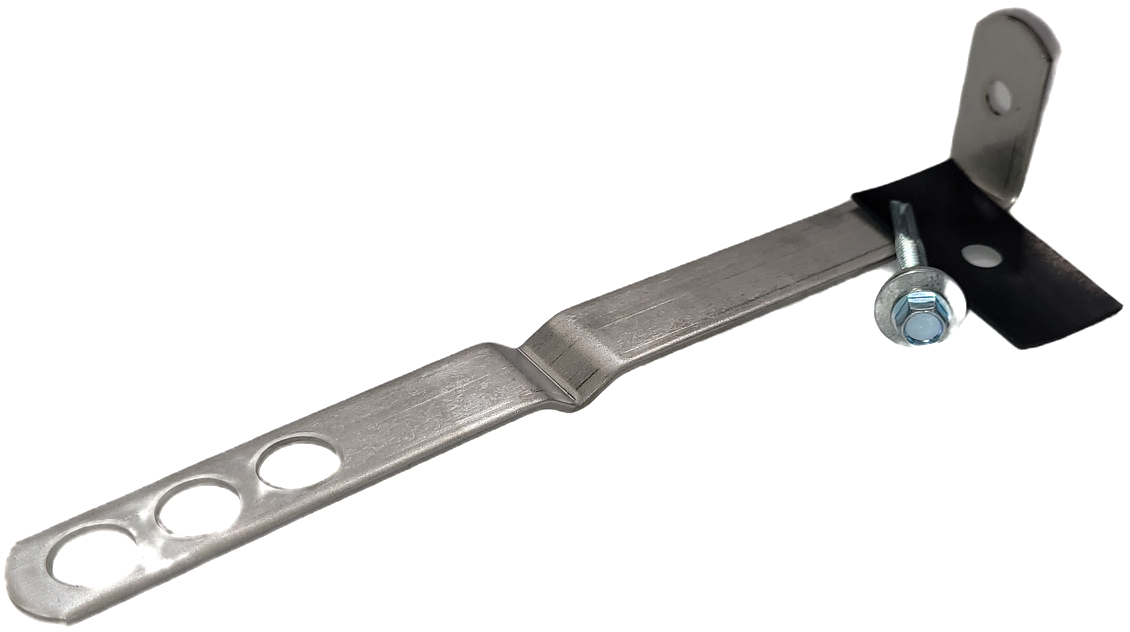

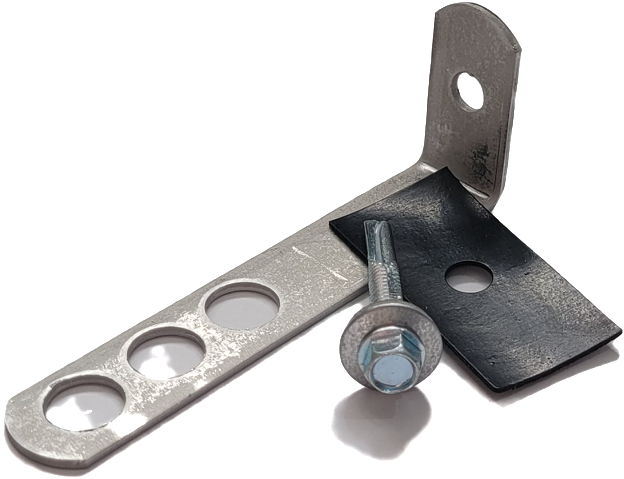

Stainless Steel Frame Cramp Ties (with and without drip), Isolation Pads and Tek Screws

Stainless steel frame cramp ties with and without drip, supplied with neoprene isolation pads and Tek screws for fixing.  Ideal for tying masonry to steel columns and wind posts.

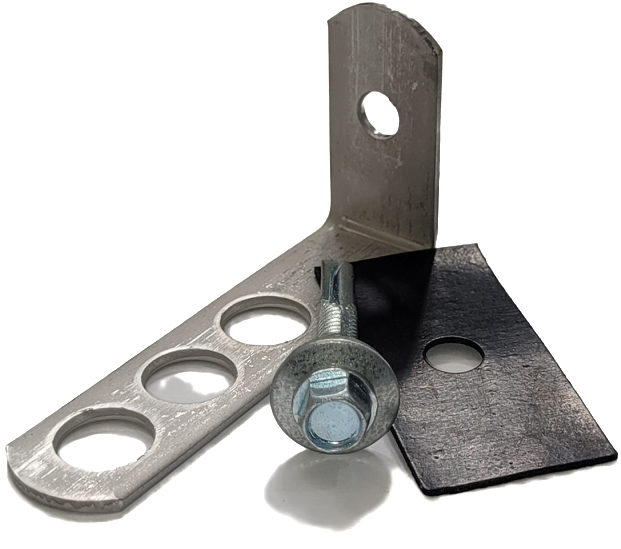

Ties available in 75mm & 100mm without drip, and 100mm to 250mm in 25mm increments with drip.

The drip bends are located 90mm from the end of the tie to the centre of the drip.  The start of the bend is approximately 83mm from the end of the tie.

Unless requested otherwise the supplied Tek screw will be 5.5mm x 40mm and suitable for a steel thickness between 4mm and 12.5mm.

The supplied neoprene washer is 1mm thick and used between the tie and the steelwork to prevent bi-metallic corrosion.

Prices are per unit (one tie, one washer and one Tek screw)

Unsure which length you need? Contact us with your column and masonry arrangements for advice.
