Earl Heavy Duty 100mm Cavity Wall Lintel

Buy a lintel or windpost and get £5 off a tub of Vortex screws.

The offer applies per item – for example, buy 5 qualifying lintels or windposts and you can get 5 tubs of screws each with a £5 discount.  This applies to tubs only and not boxes. Discount automatically applied at checkout.  Minimum £25 lintel value.

Click Here for Vortex Woodscrews

Lengths longer than 3m available subject to delivery, contact us for pricing.

Why Choose This Lintel?

You're not buying from a merchant, you're buying direct from the manufacturer.

By removing merchant markups, we're able to manufacture our lintels from 3mm thick steel while remaining competitively priced online.

Our standard duty 100mm cavity range is manufactured from 3mm thick steel, giving the lintel a rigid and robust construction.

Product Overview

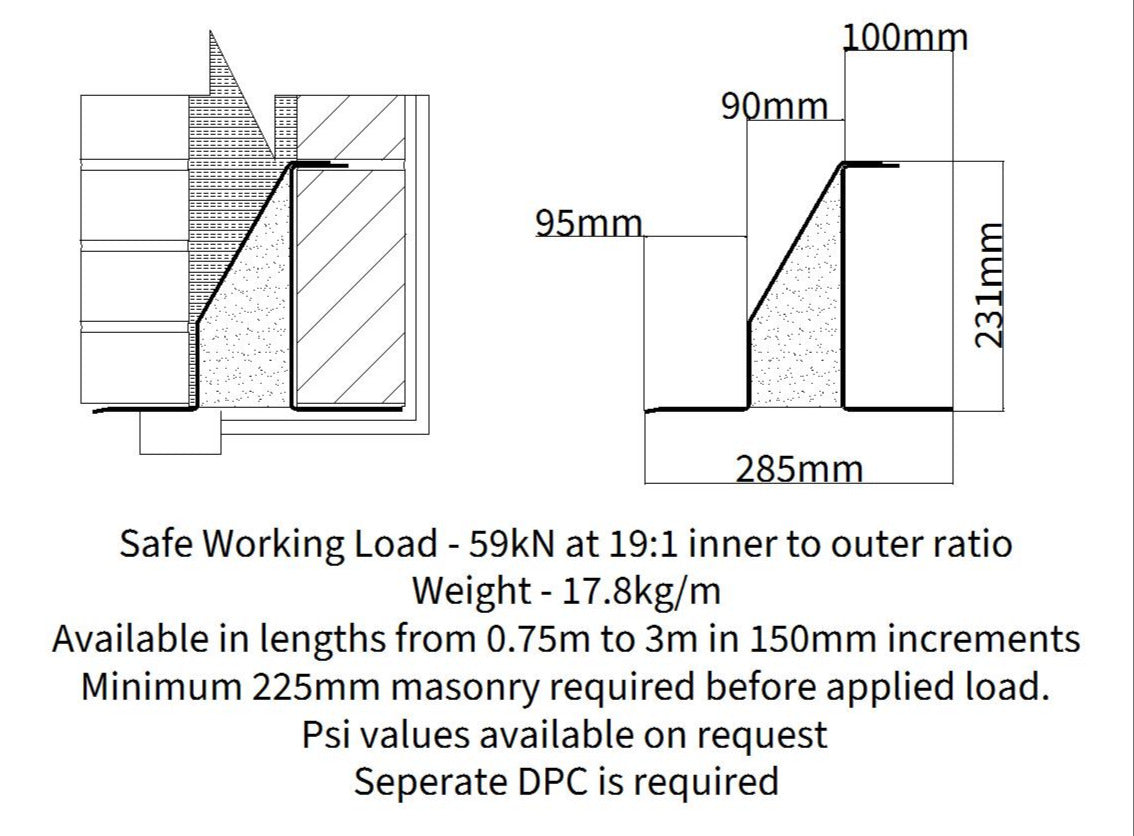

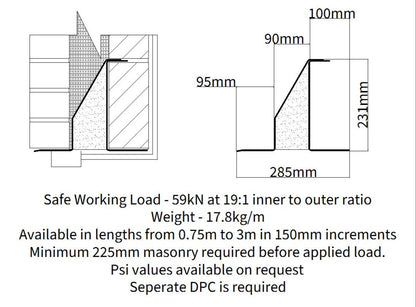

These lintels have been designed to support cavity walls with a 100mm inner skin, 90mm - 110mm cavity width and 100mm outer skin.

It has a safe working load of 59kN at a 19:1 inner to outer load ratio.

The galvanised steel construction provides long-term corrosion protection, while the EPS insulation helps reduce thermal bridging across the cavity.

Our lintels are independently load tested and manufactured in accordance with BS EN 845-2:2013+A1:2016 for peace of mind and long-term durability.

A minimum height of 225mm of masonry must be constructed in the lintel before load is applied.

Please note that the inner skin mesh plaster key is not present for approximately 225mm–250mm at each end of the lintel. Ensure that the mesh is not positioned within the bearing area.

A minimum bearing of 150mm is required at each end.

Key Features

• Designed for 90mm - 110mm cavity, 100mm inner skin and 100mm outer skin
• Galvanised steel for corrosion resistance
• EPS insulated core
• Independently load tested
• UKCA marked
• Manufactured in the UK
• Supplied direct from the manufacturer

Click here for our lintel installation guide

Other manufacturers heavy duty lintels:

Catnic CX90/100

Keystone CFS/K-90

Birtley HD90

Stressline SL90CHXD225

Always check the required Safe Working Load, cavity width, wall construction and manufacturer's technical data when selecting a lintel.

Manufactured from galvanised steel for excellent corrosion resistance. Minor cosmetic marks associated with transport, storage and the galvanising process may be present and do not affect structural performance or durability of the lintel.
