Earl L-100 Single Leaf Angle Lintel
Why Choose the L-100?
You're buying direct from the manufacturer — not through a builders merchant.
By removing merchant markups, we're able to manufacture our lintels from typically thicker steel sections while remaining competitively priced online.
The EARL L-100 range has been designed to be typically thicker than other manufacturers to provide rigidity, strength, and build quality.
Product Overview
The EARL L-100 is a single leaf L-shaped angle lintel designed to support a 100mm outer leaf of masonry above structural openings.
Manufactured from galvanised steel, the L-100 provides reliable masonry support.
A minimum 150mm bearing each end is needed.
The lintel range is independently load tested and manufactured in accordance with BS EN 845-2:2013+A1:2016 for peace of mind and long-term durability.
Propping the lintel at 1.2m centres is required during construction. Props must remain in place until the wall is fully loaded and the mortar has fully cured.

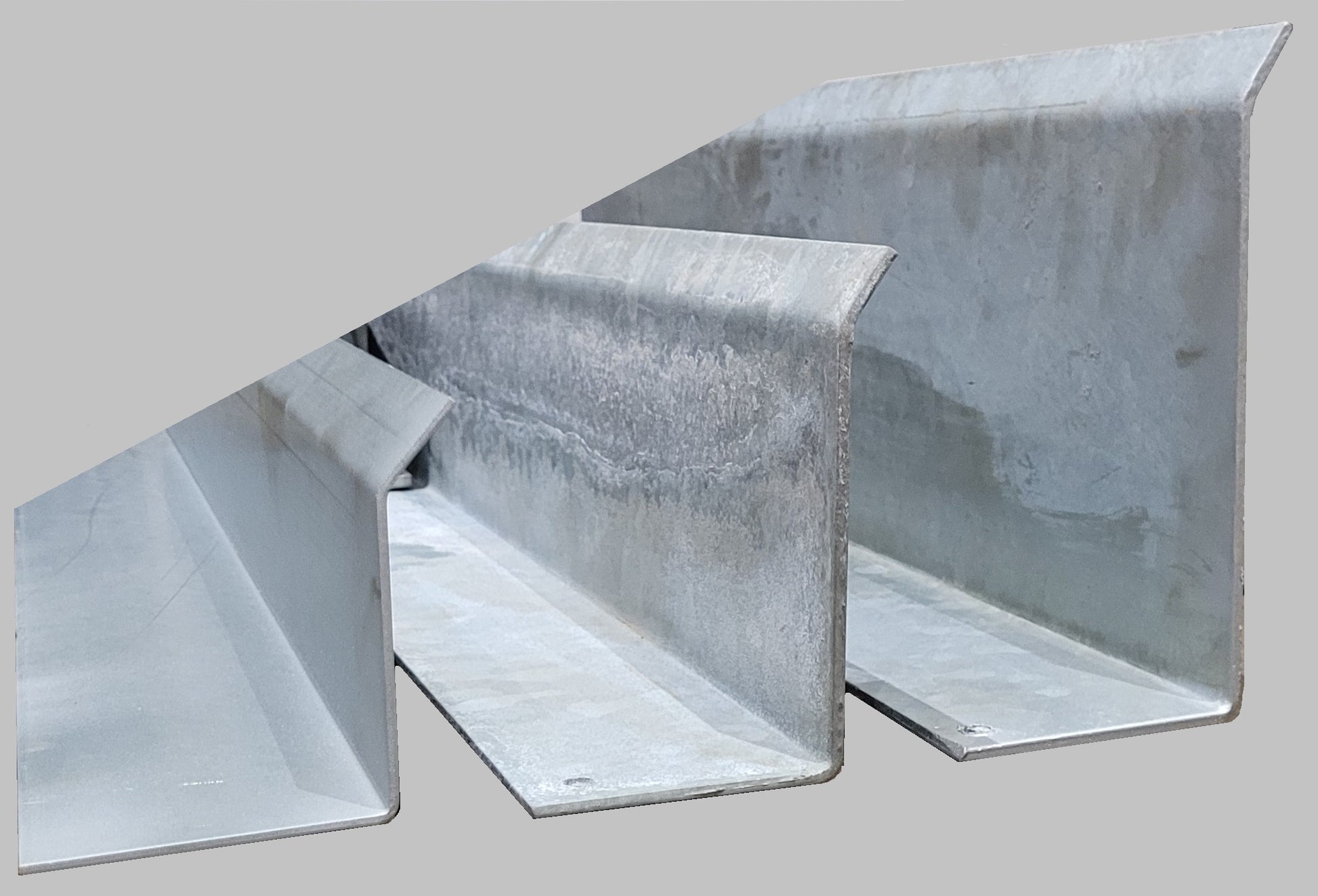

Specification by Length

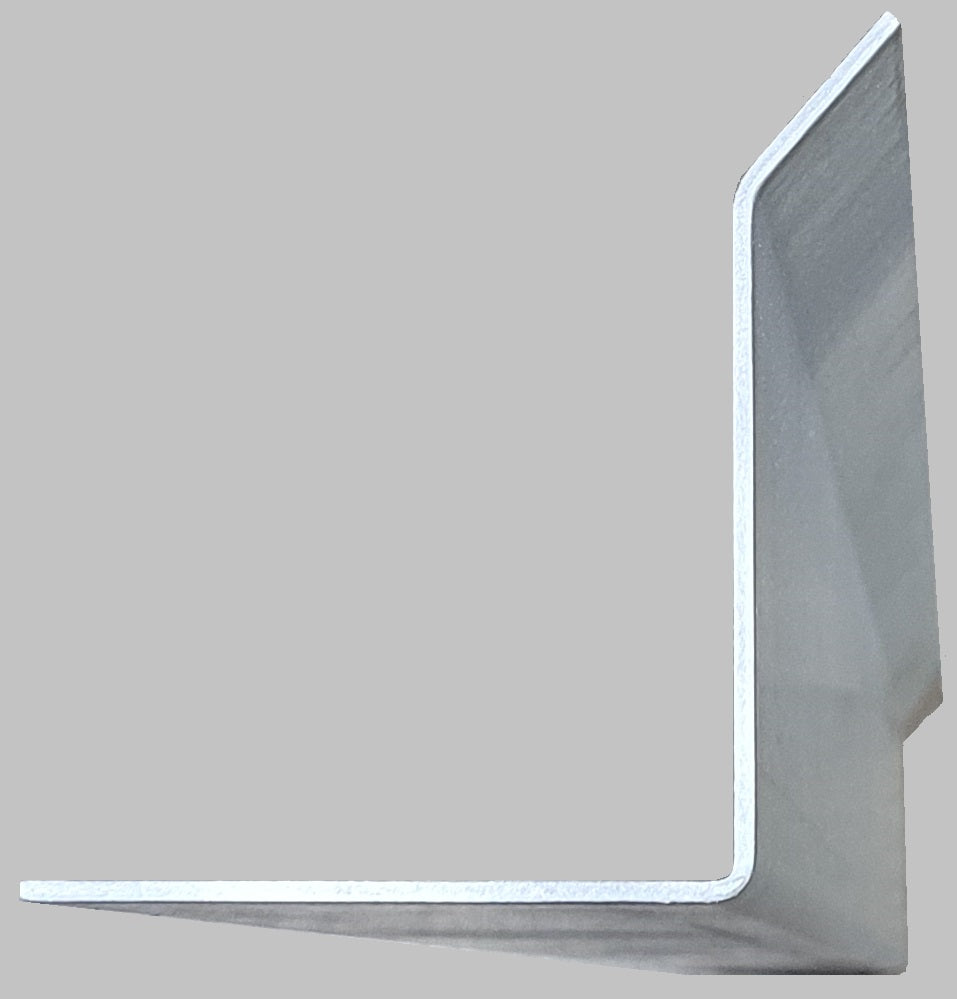

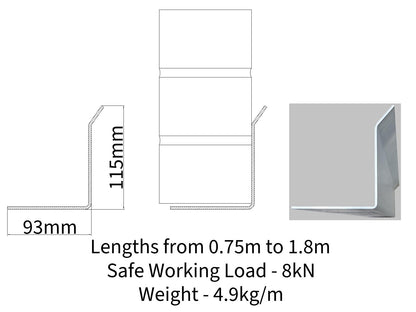

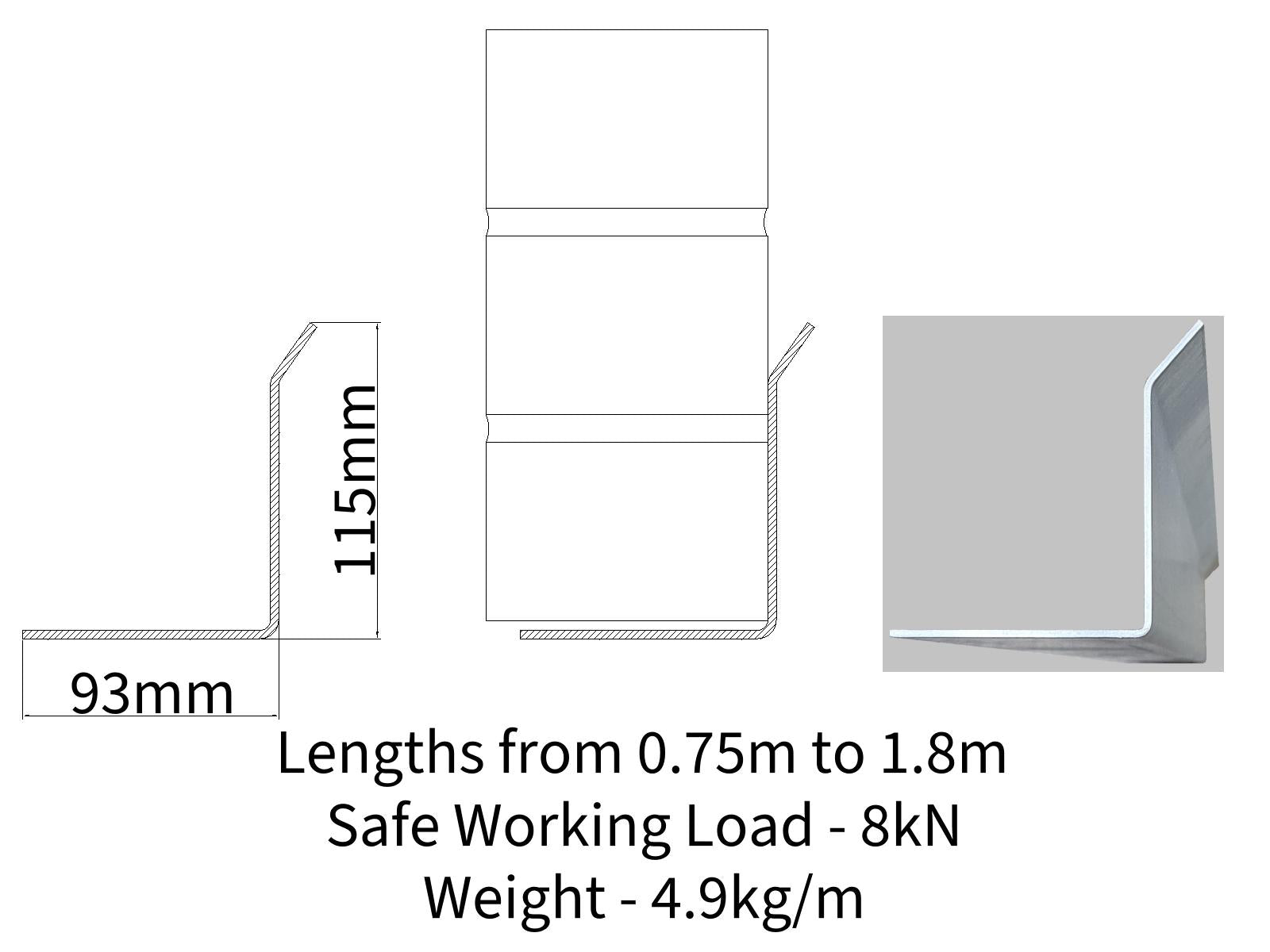

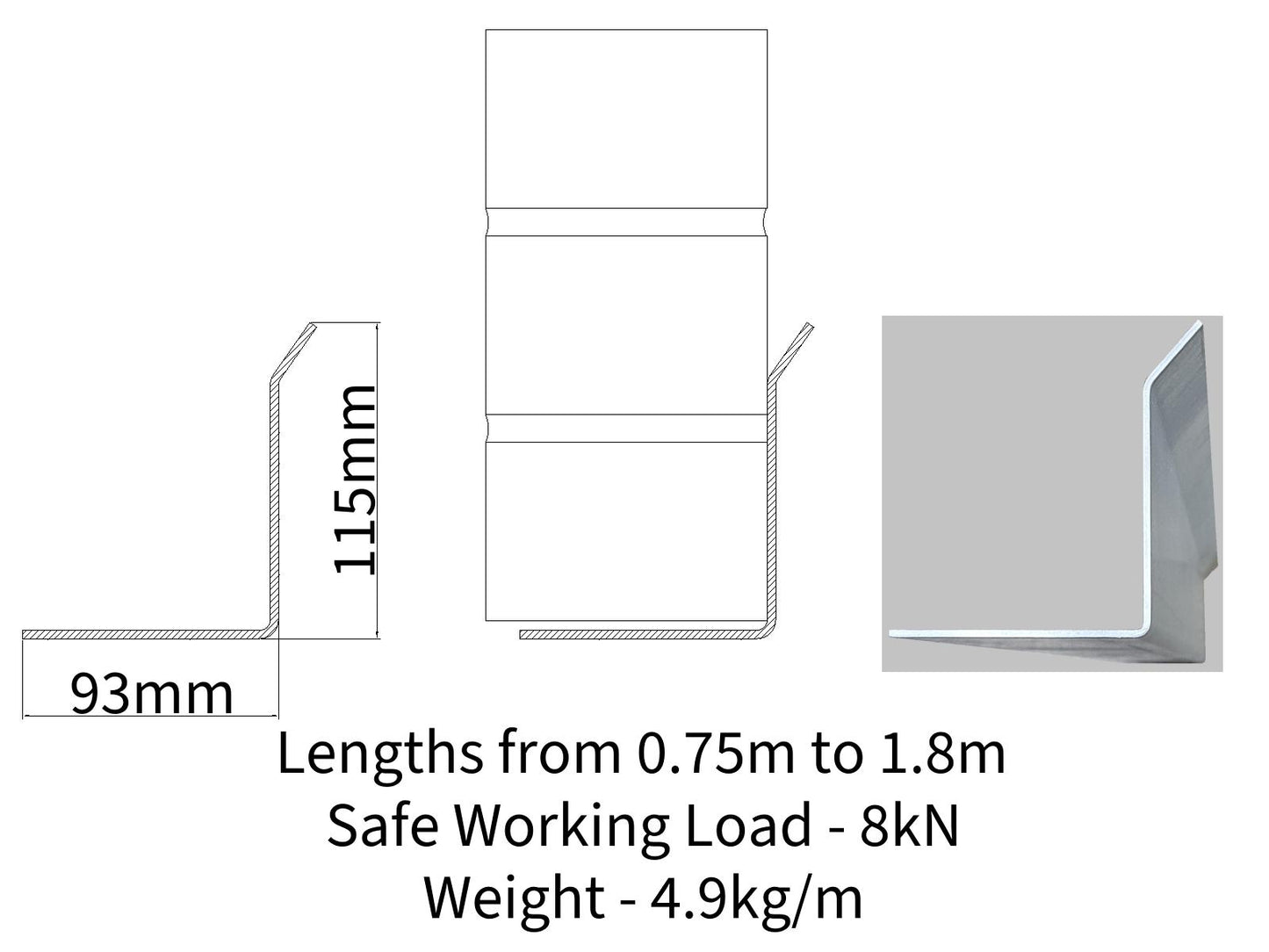

0.75m – 1.8m Lengths
- 115mm profile height
- 3mm thick DX51D+Z600 galvanised steel
- 8kN Safe Working Load

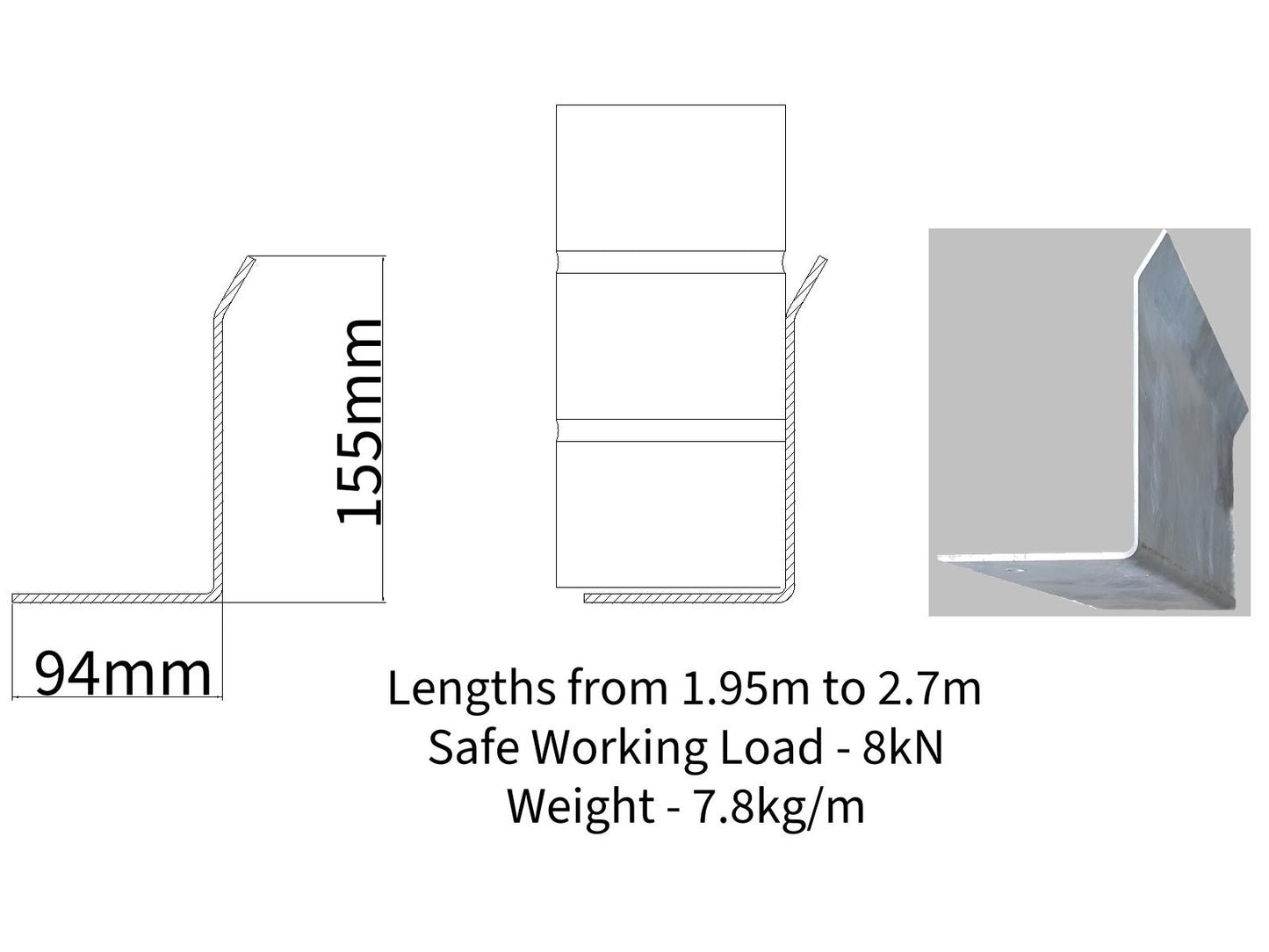

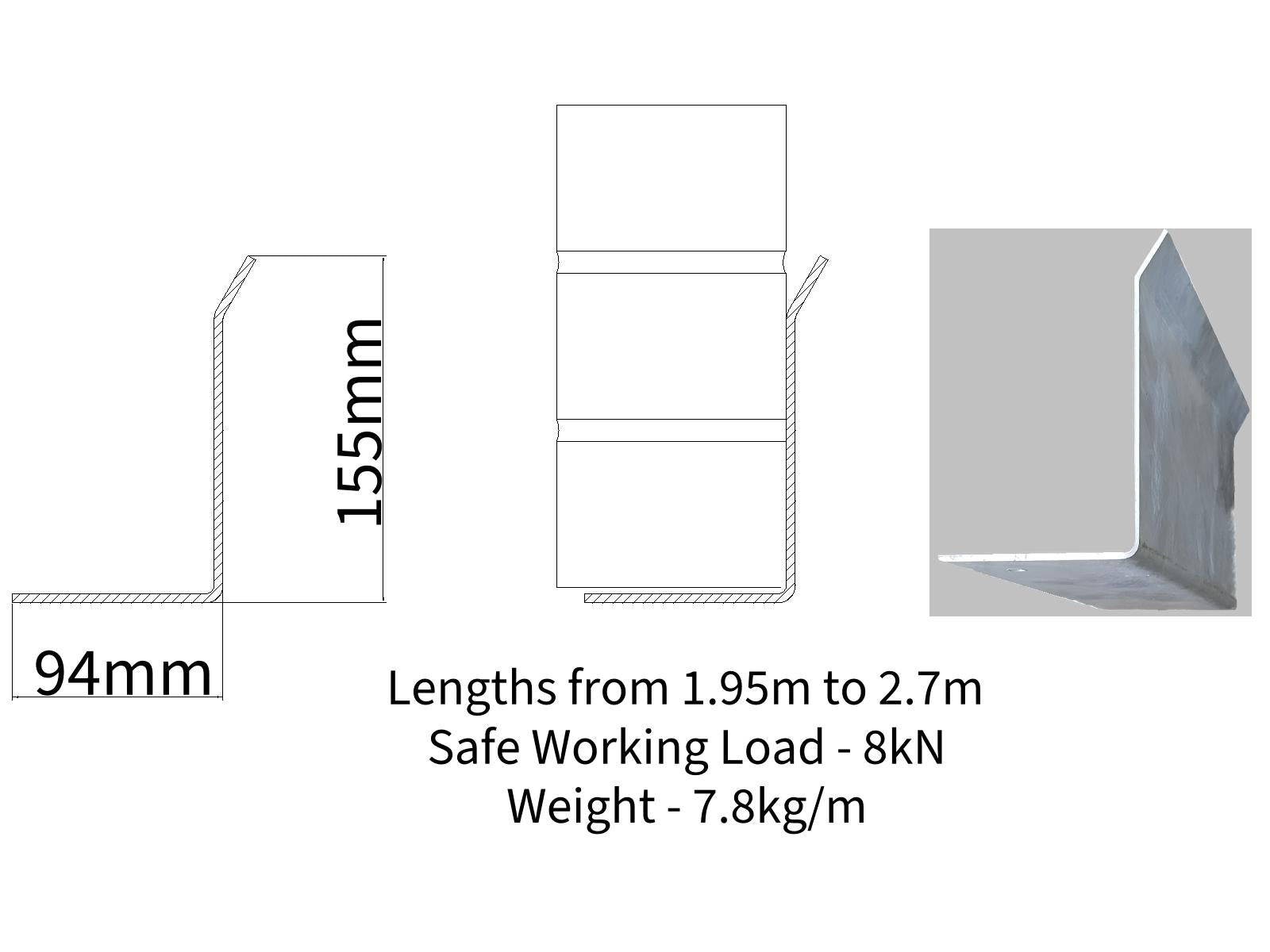

1.95m – 2.7m Lengths
- 155mm profile height
- 4mm thick S275 hot dip galvanised steel
- 8kN Safe Working Load

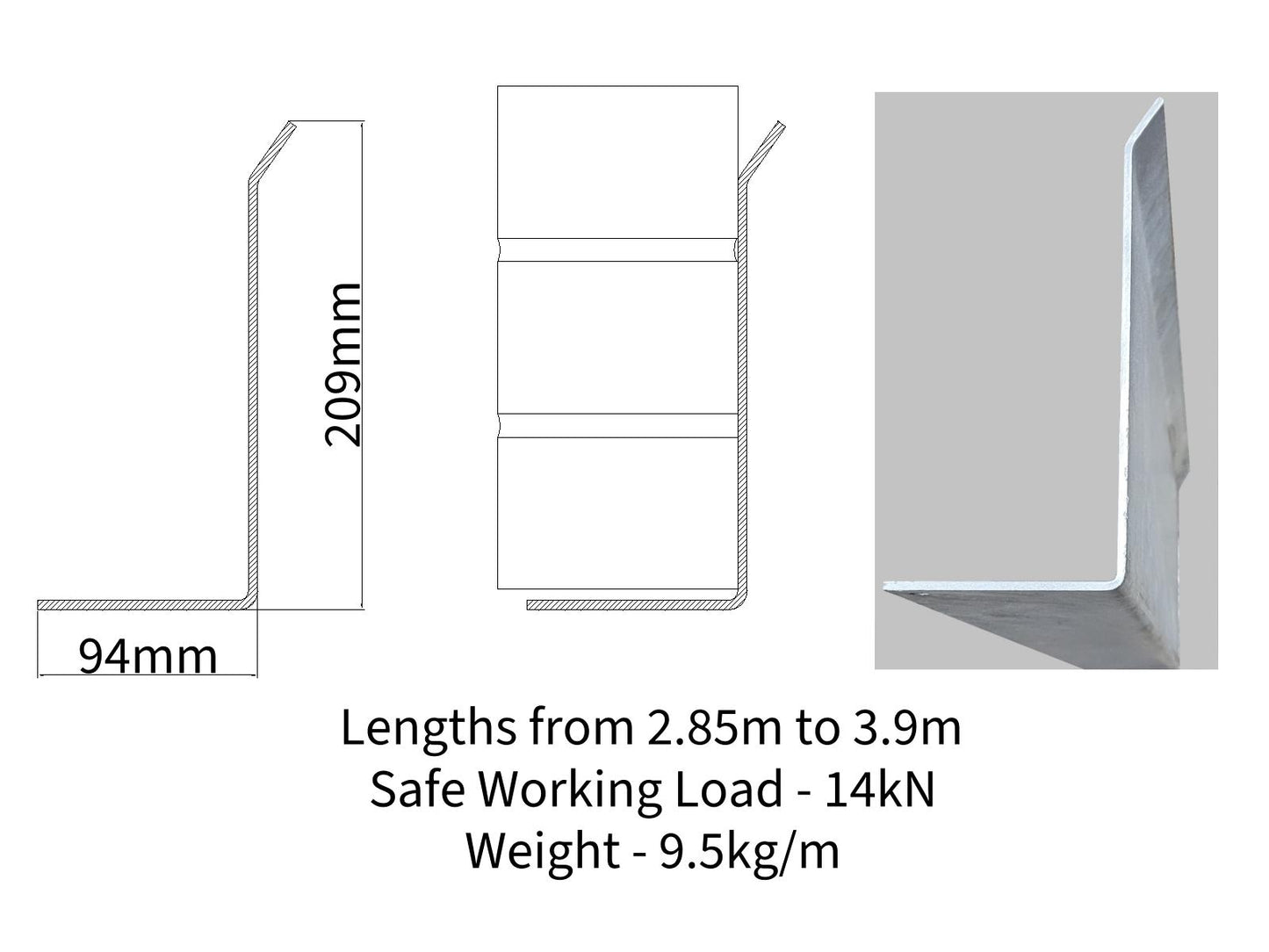

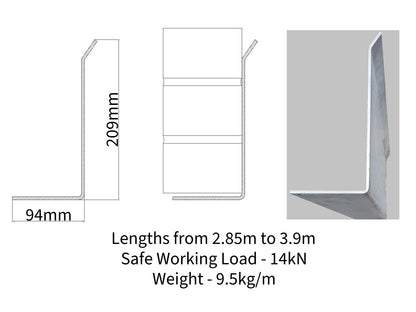

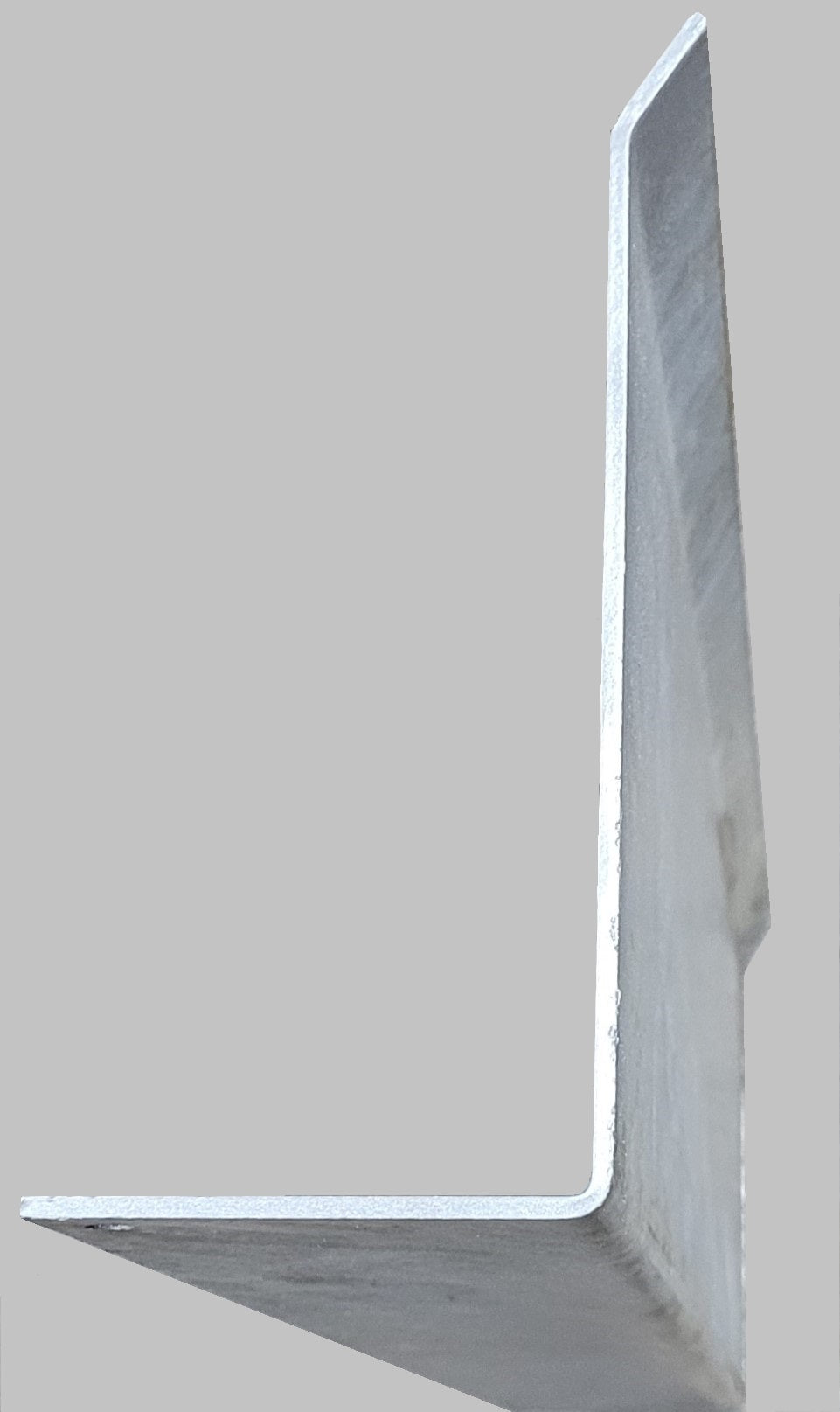

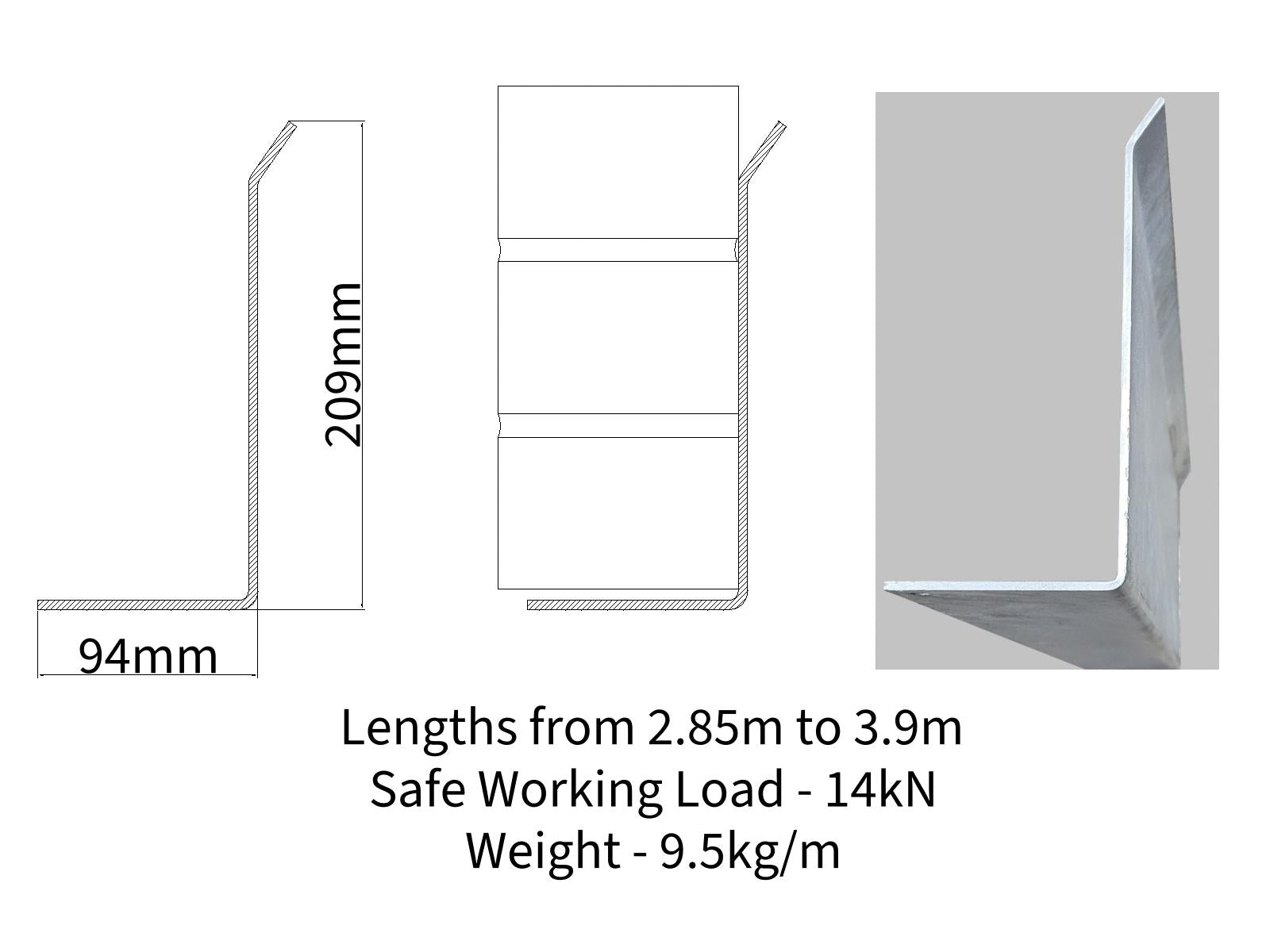

2.85m – 3.9m Lengths
- 209mm profile height
- 4mm thick S275 hot dip galvanised steel
- 14kN Safe Working Load
Key Features
- Designed for 100mm single leaf masonry
- Galvanised steel for corrosion resistance
- Independently load tested
- UKCA marked
- Manufactured in the UK
- Supplied direct from the manufacturer
Other manufacturers single leaf lintels include:
Catnic ANG
Keystone SB/K
Birtley LA
Stressline SL100TR
IG L10
Manufactured from galvanised steel for excellent corrosion resistance. Minor cosmetic marks associated with transport, storage and the galvanising process may be present and do not affect structural performance or durability.
