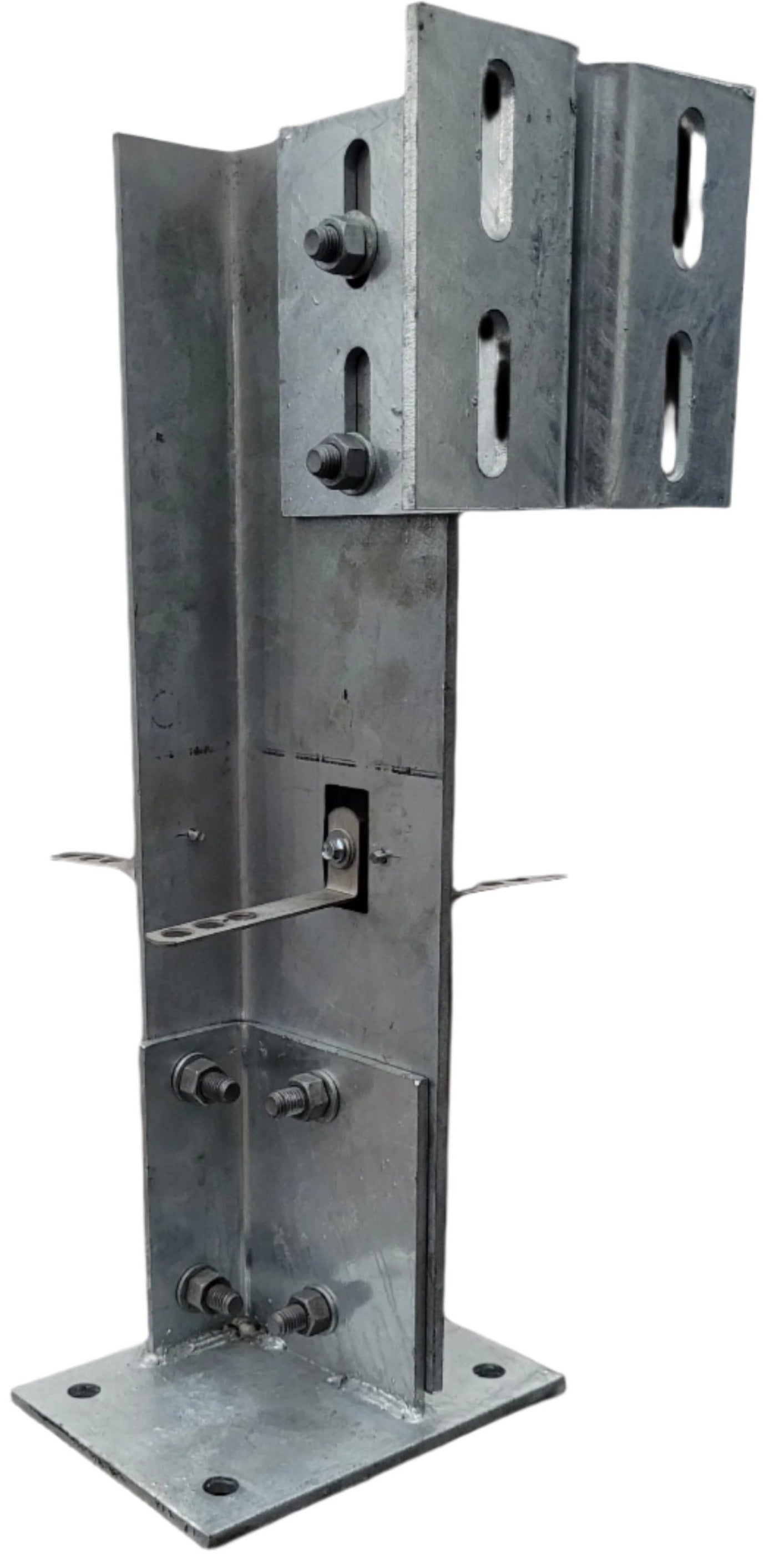

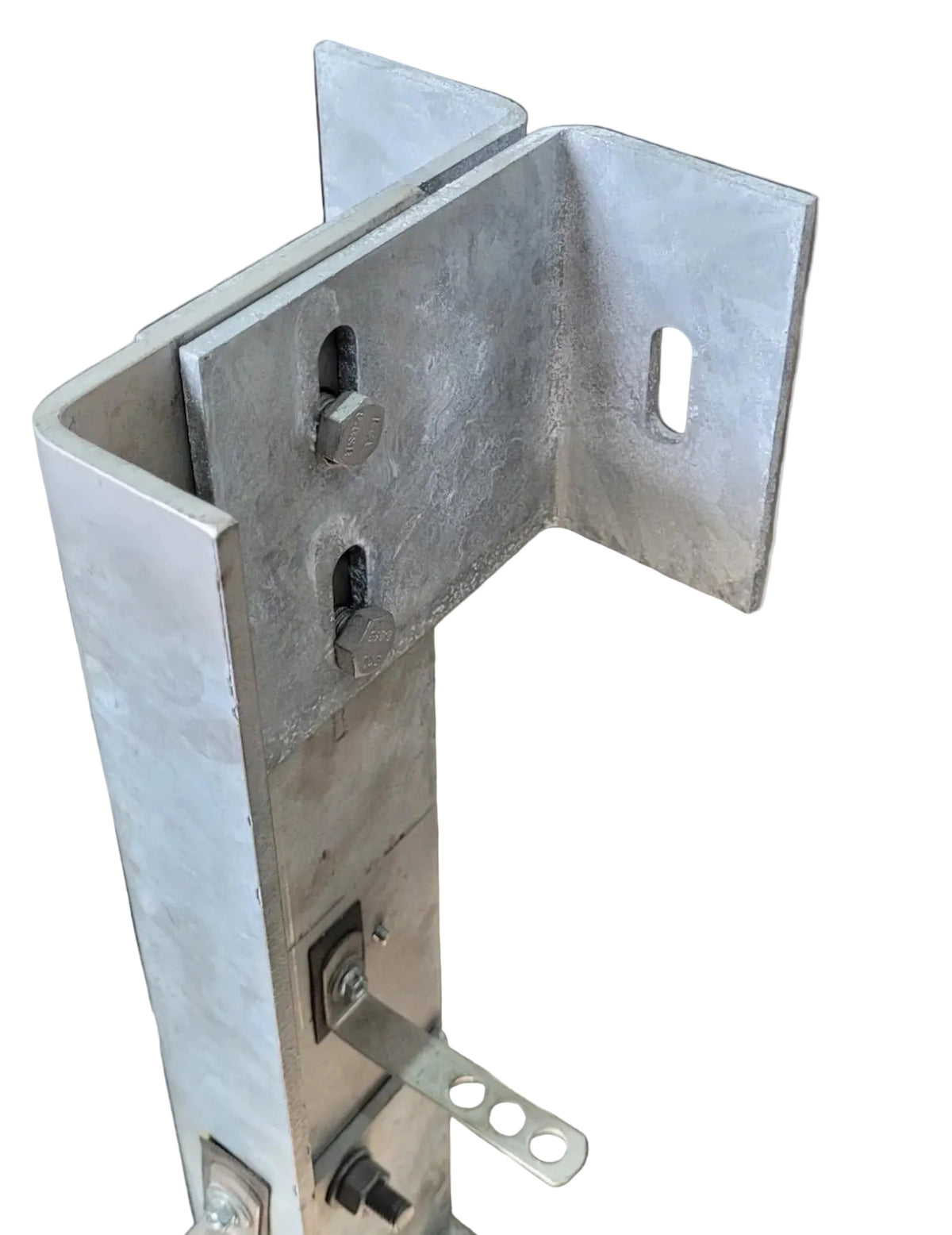

Earl WP-A130 Windpost

Earl WP-A130 Windpost – An angle (‘L’ shaped) windpost suitable for cavities starting from 50mm

Please note that our windposts need to be cut and drilled to suit requirements on site.  All cut edges should be treated with cold galvanizing paint or bitumen (eg. Blackjack).

Unsure if this post is right for you, or don't know which connectors to choose? Contact us with your project details. We can advise what is needed, and provide structural calculations for what we supply.

Overview

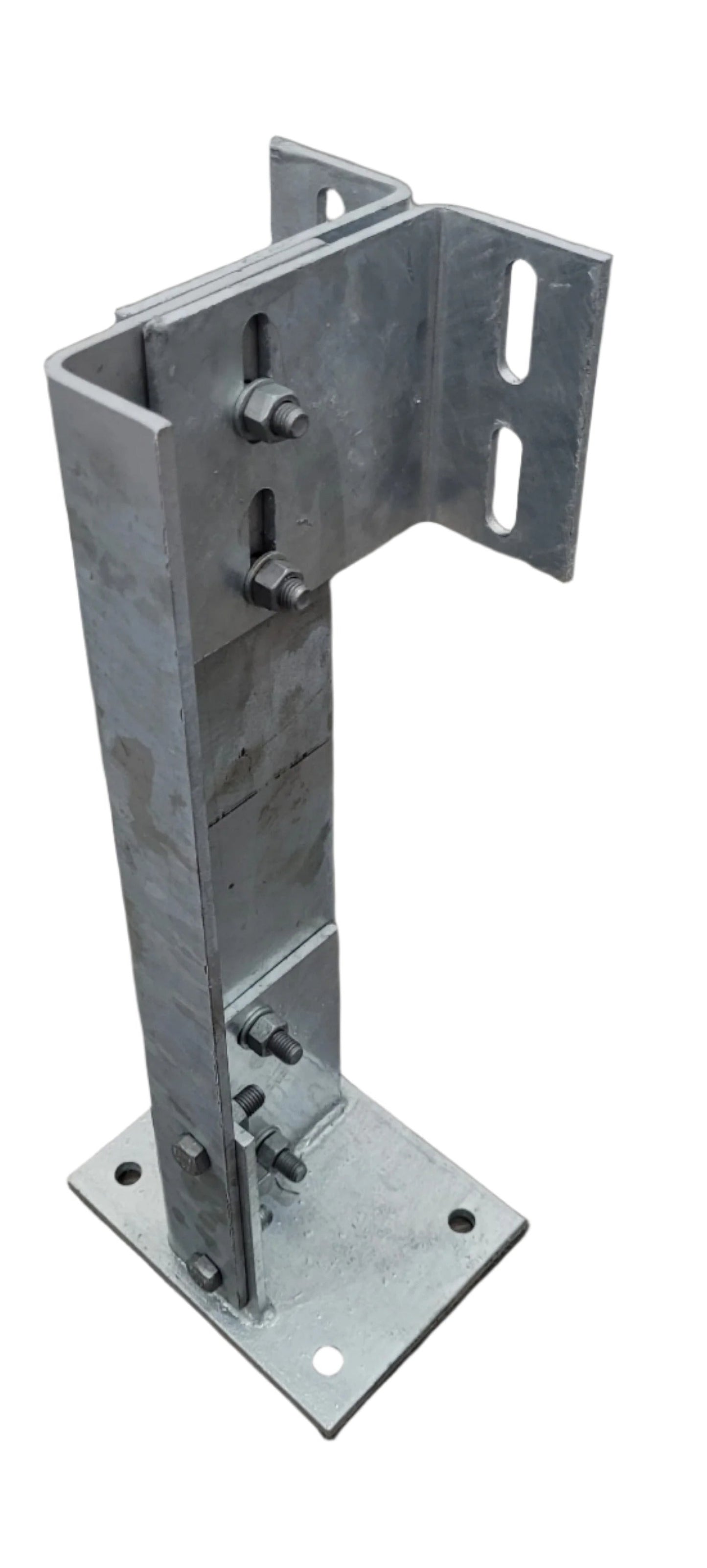

·         This windpost is a 130mm x 60mm angle ‘L’ formed using 6mm thick mild steel.

·         This post is intended to be located within the inner skin and cavity of a cavity wall.

·         All steel has been hot dipped galvanized to ensure longevity.

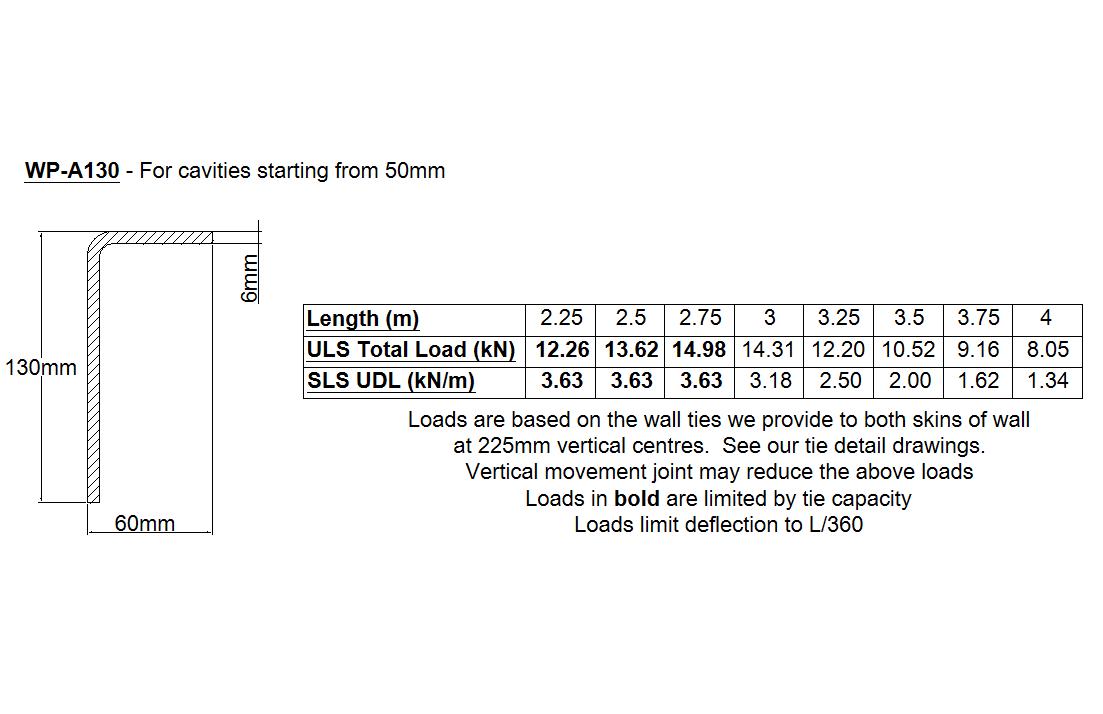

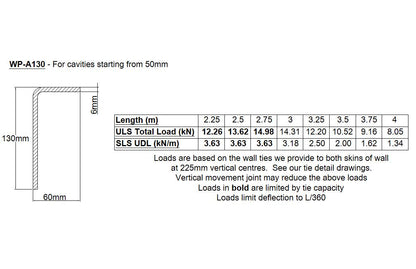

·         The load capacity of this windpost has been determined by our in-house structural engineer, who is also on hand to answer any technical questions you may have.

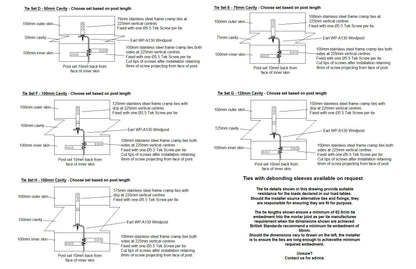

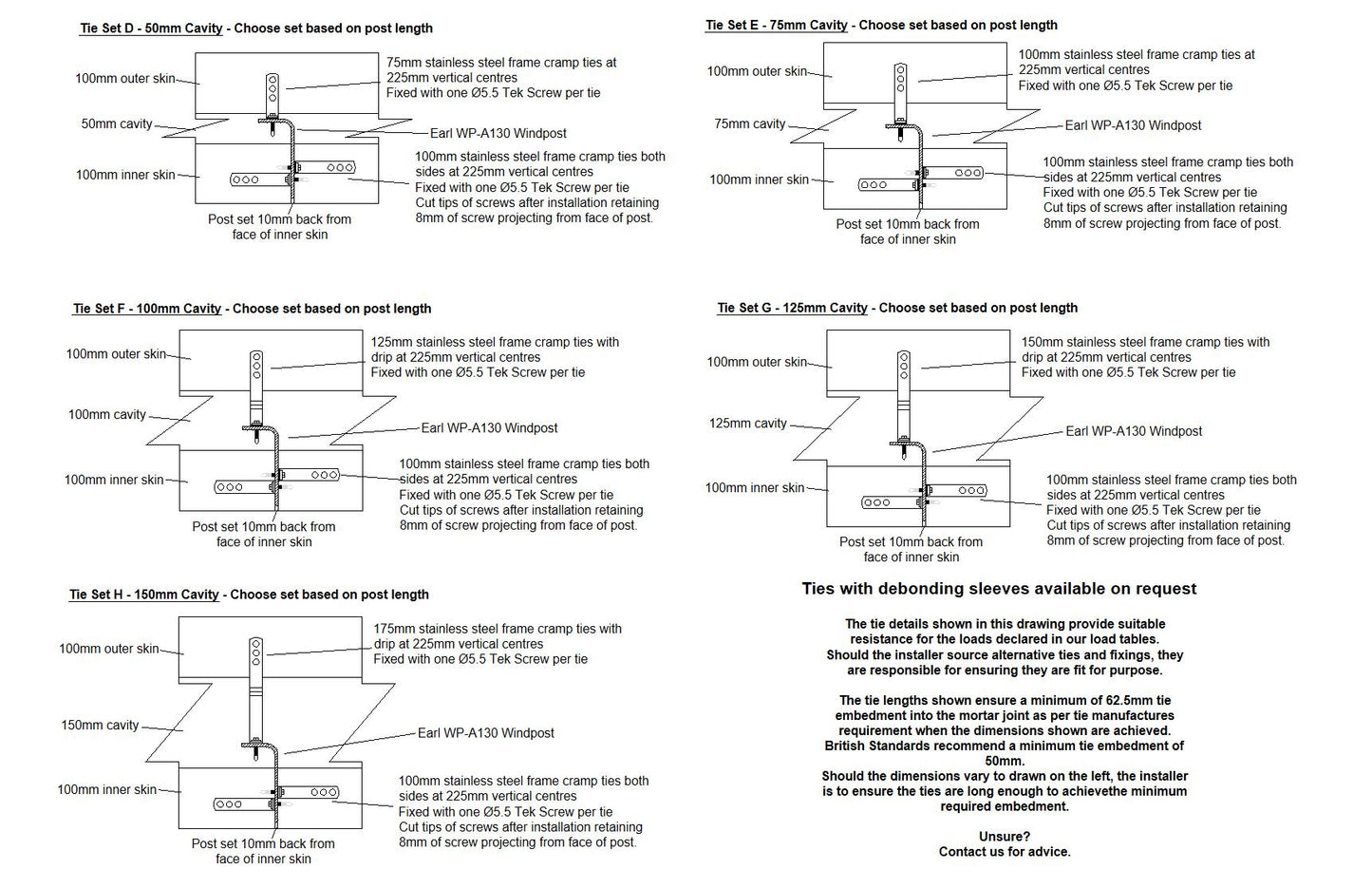

·         This post can be supplied with all frame cramp wall ties, Tek screws and isolation pads required.  See the options in the drop-down box to see which you need.

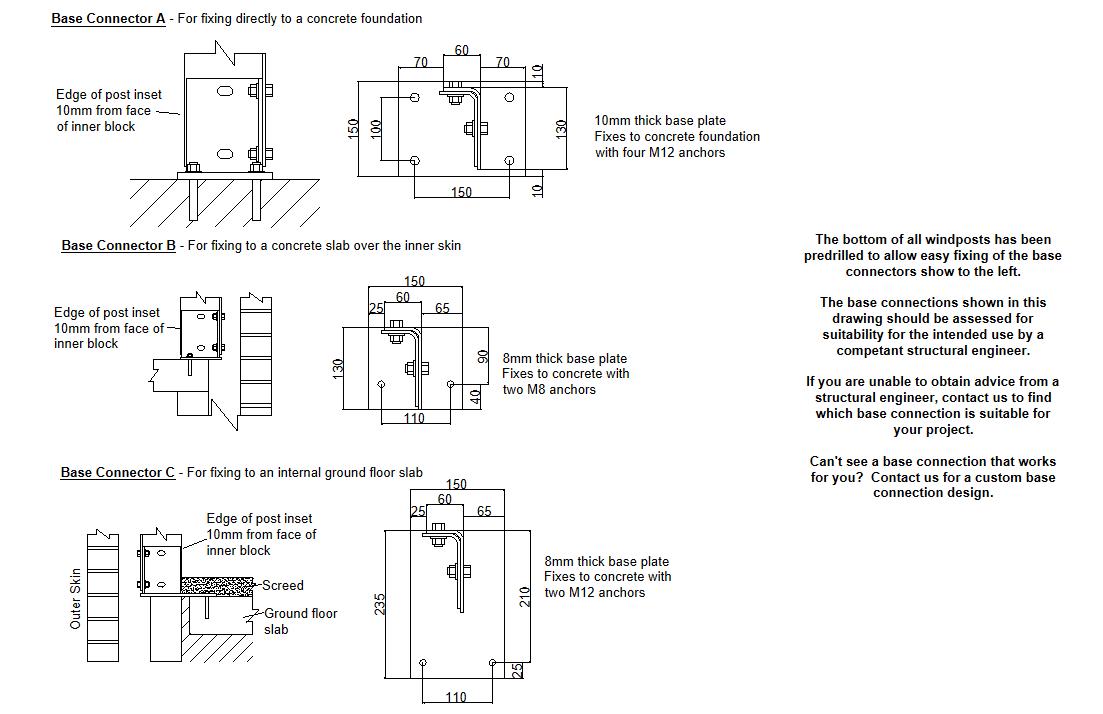

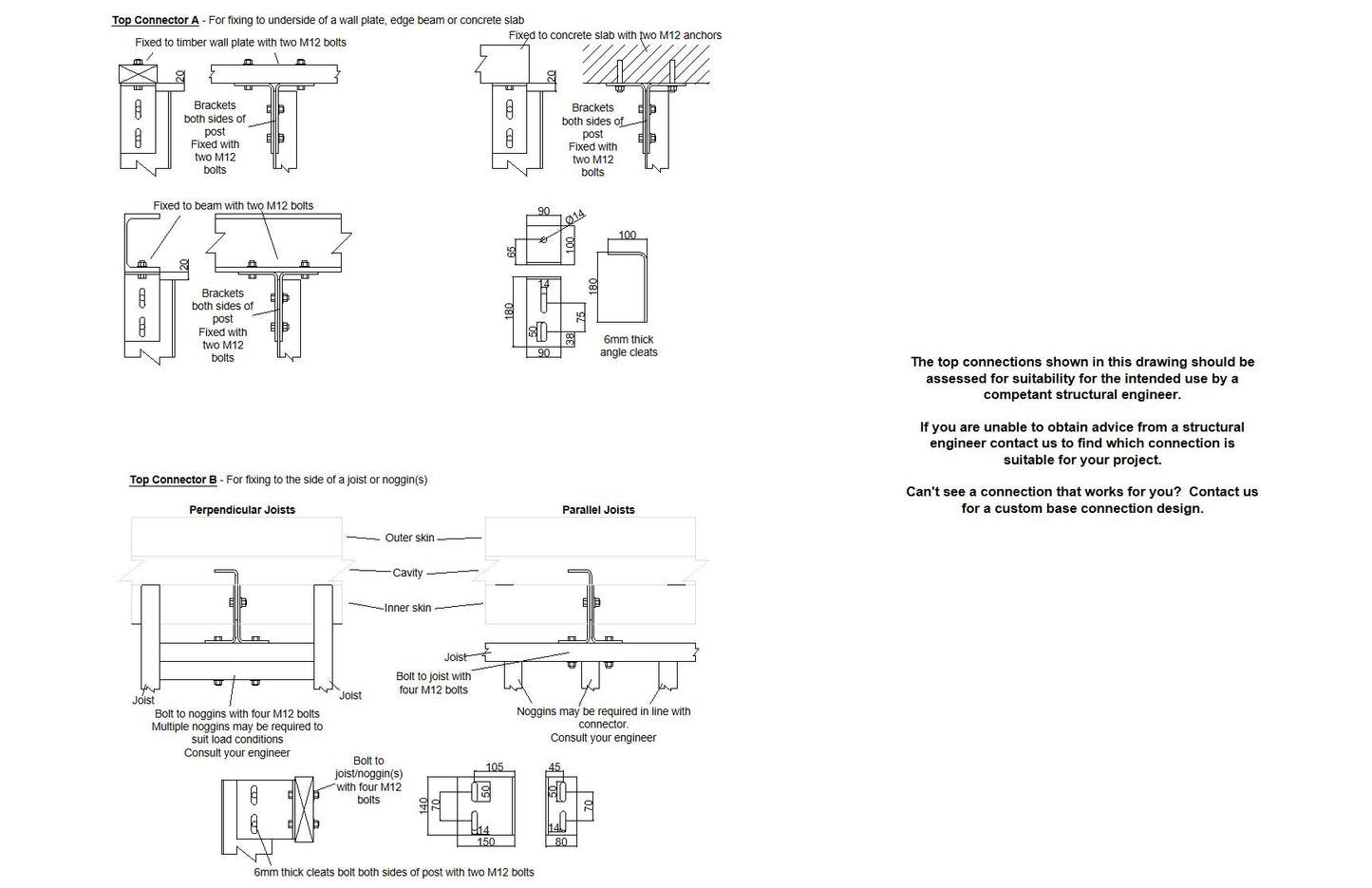

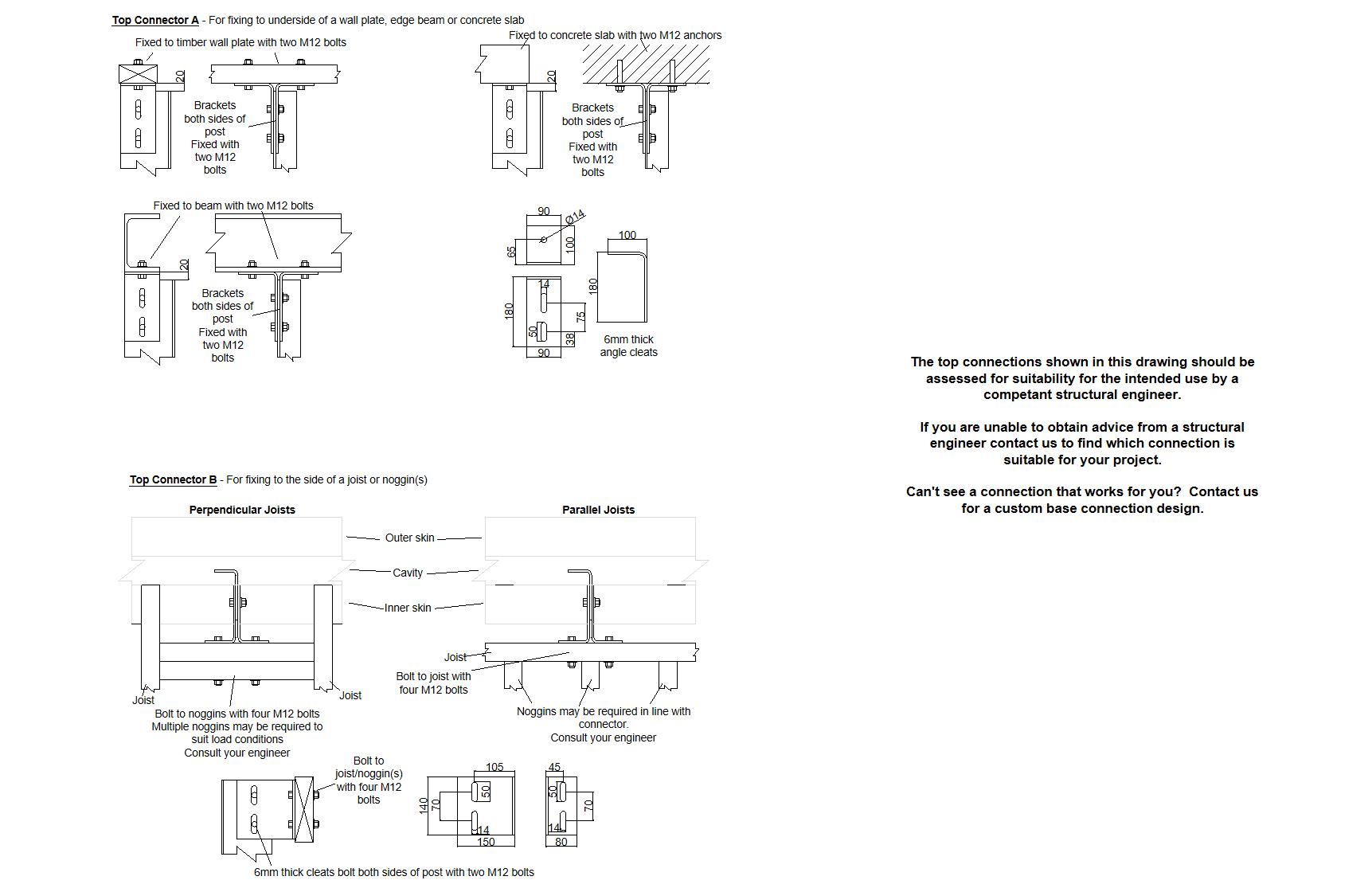

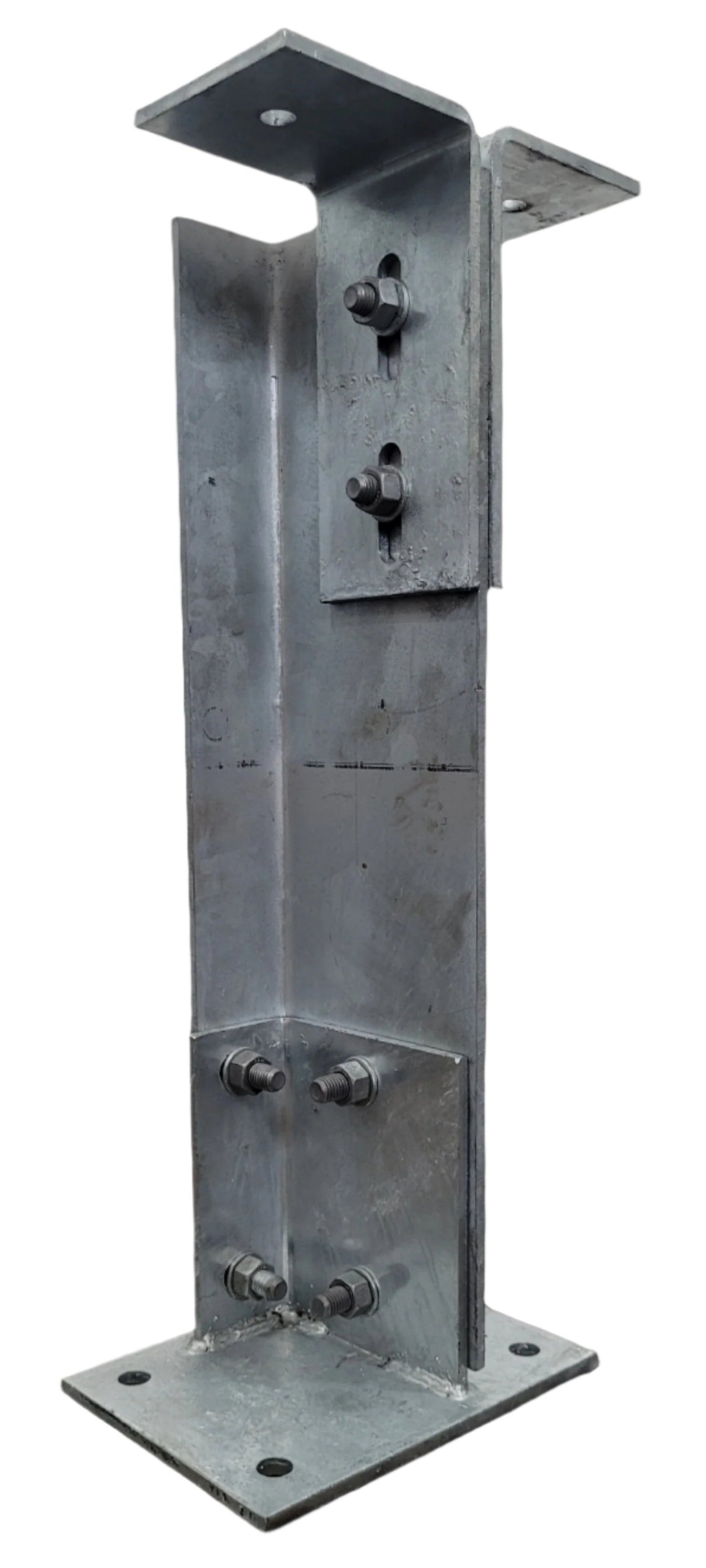

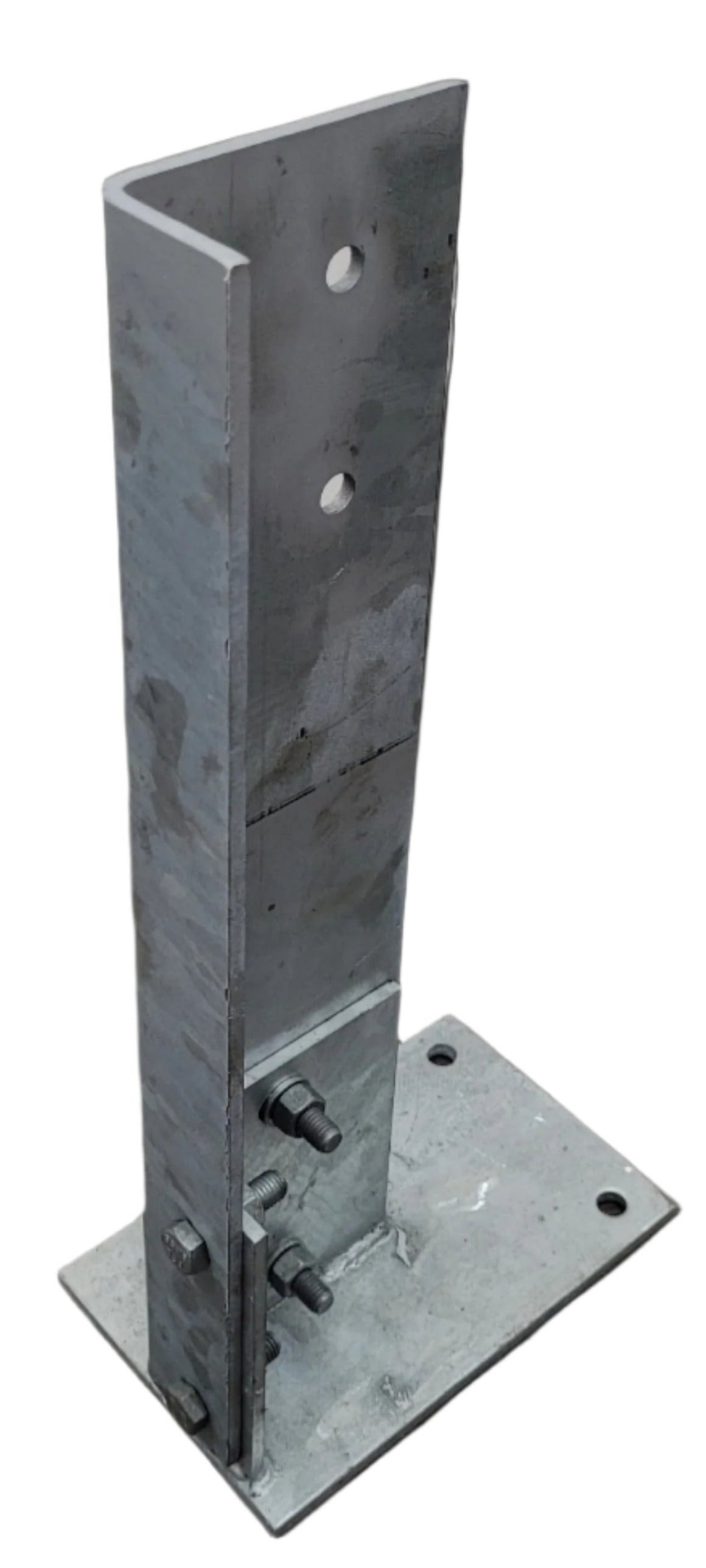

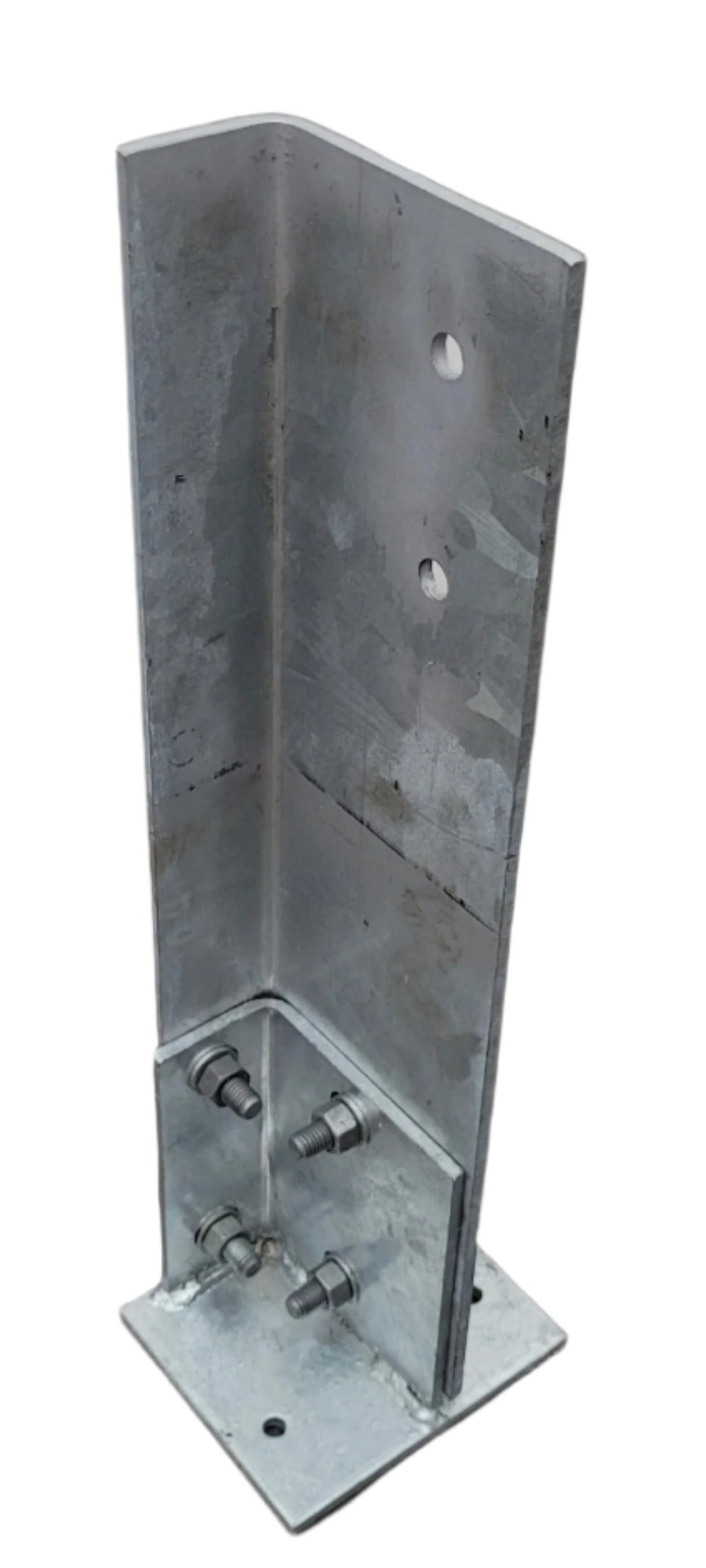

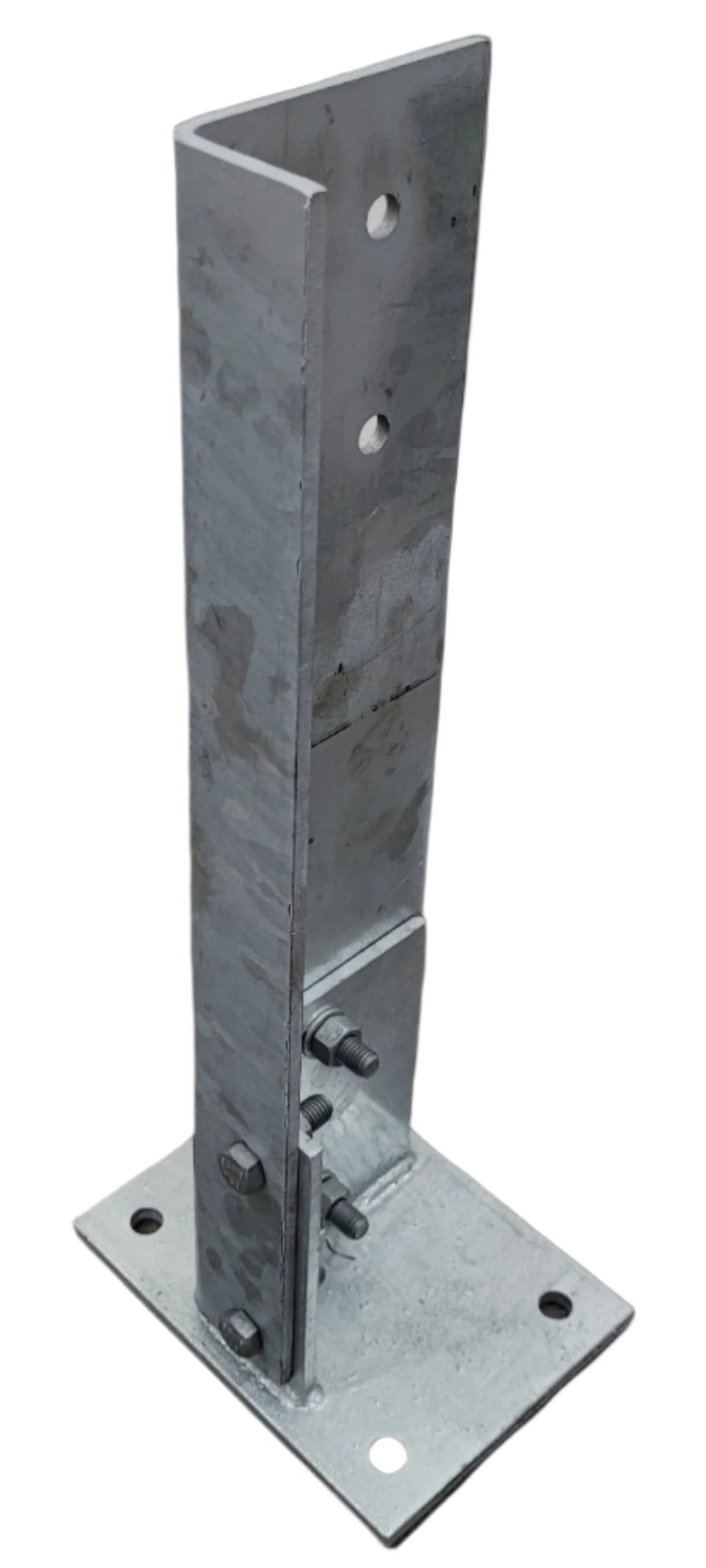

·         A variety of base and top connectors are available to suit most applications.  We can provide bespoke connectors where none of the range apply.

·         This approach to windposts removes the need for accurate measuring and lengthy production times, resulting in a fast delivery and a system that is not prone to costly errors.

·         We supply this post with anchor bolts, and supply connectors with the bolts required.

·         Tolerance on post length is -10mm/+25mm.

·         The installer/user of the post is responsible for the safe cutting and drilling procedures of the post, and for supplying any cutting and drilling equipment and consumables required.
