Earl WP-A165 Windpost (WP2 Comparable)

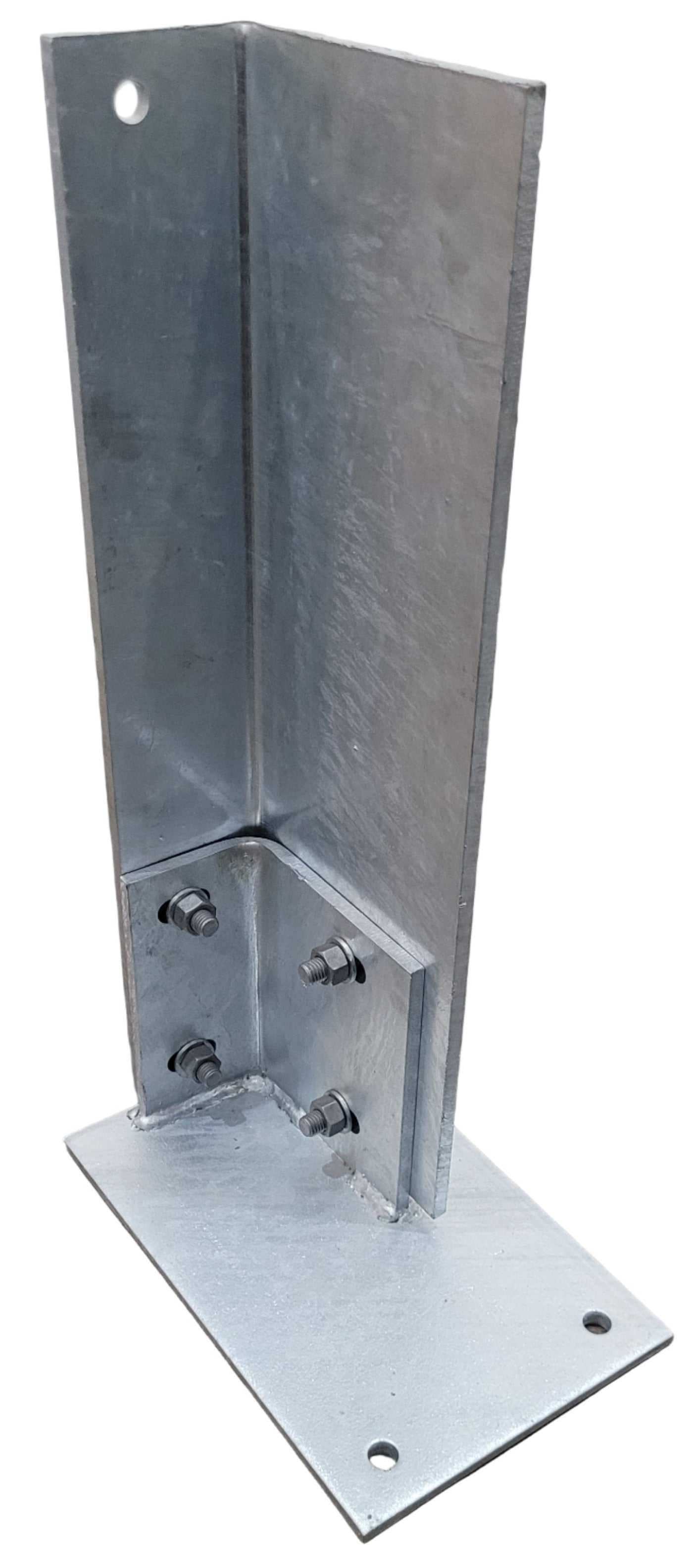

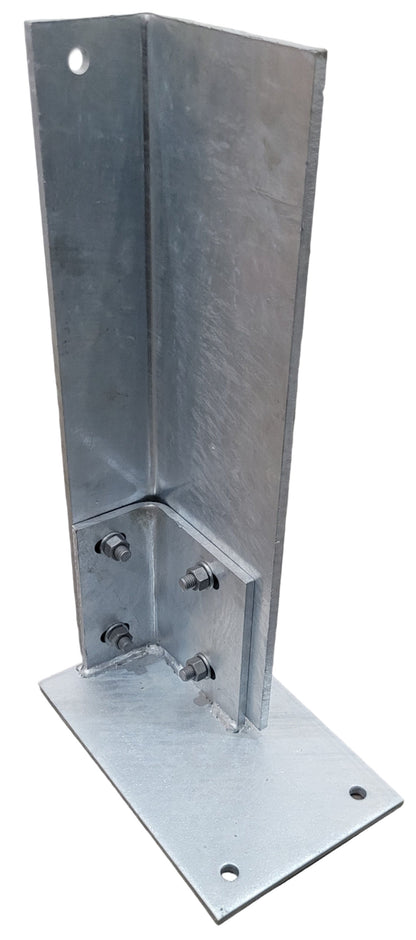

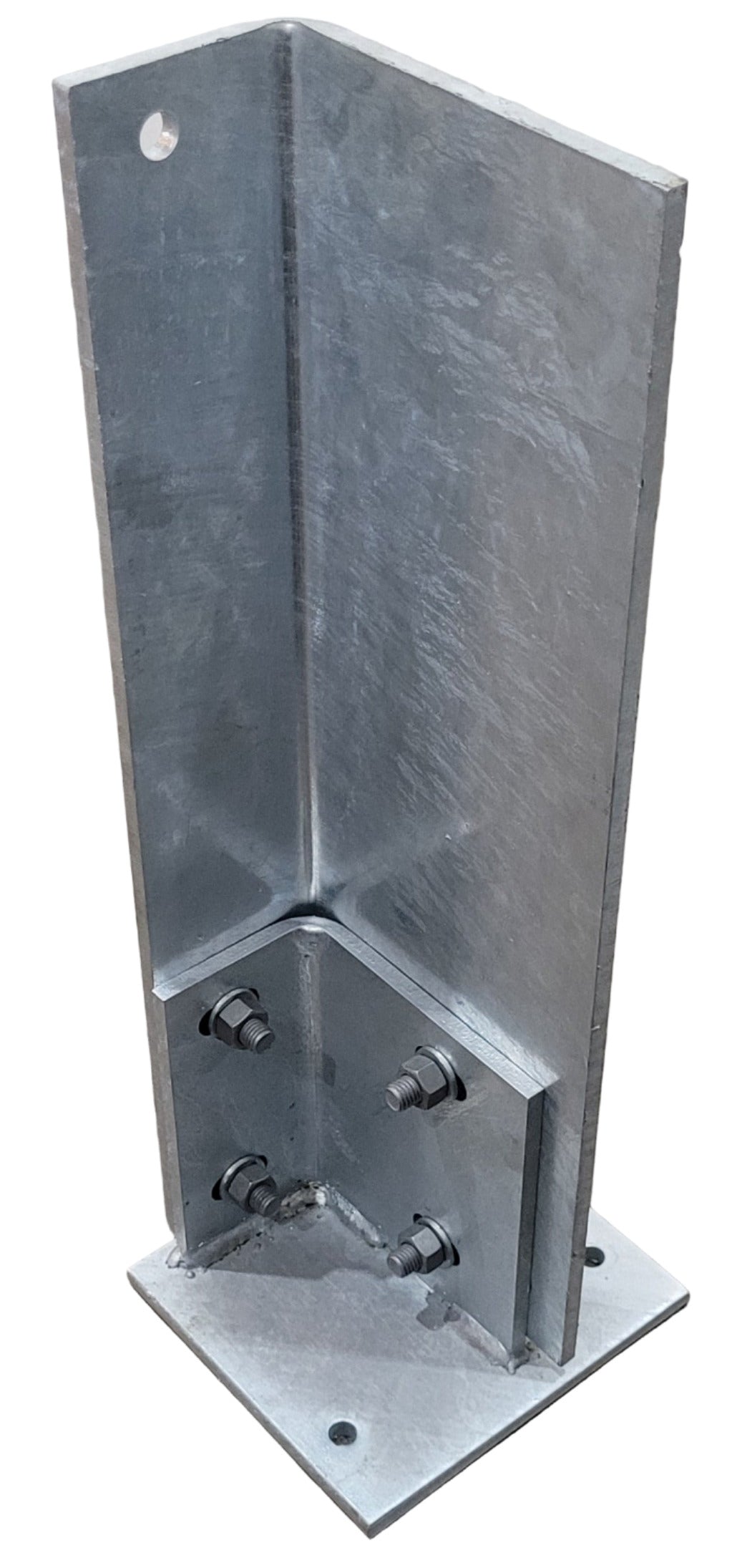

Earl WP-A165 Windpost – An angle (‘L’ shaped) windpost

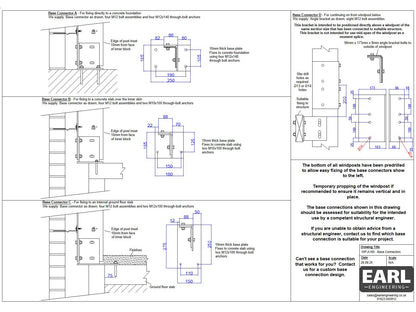

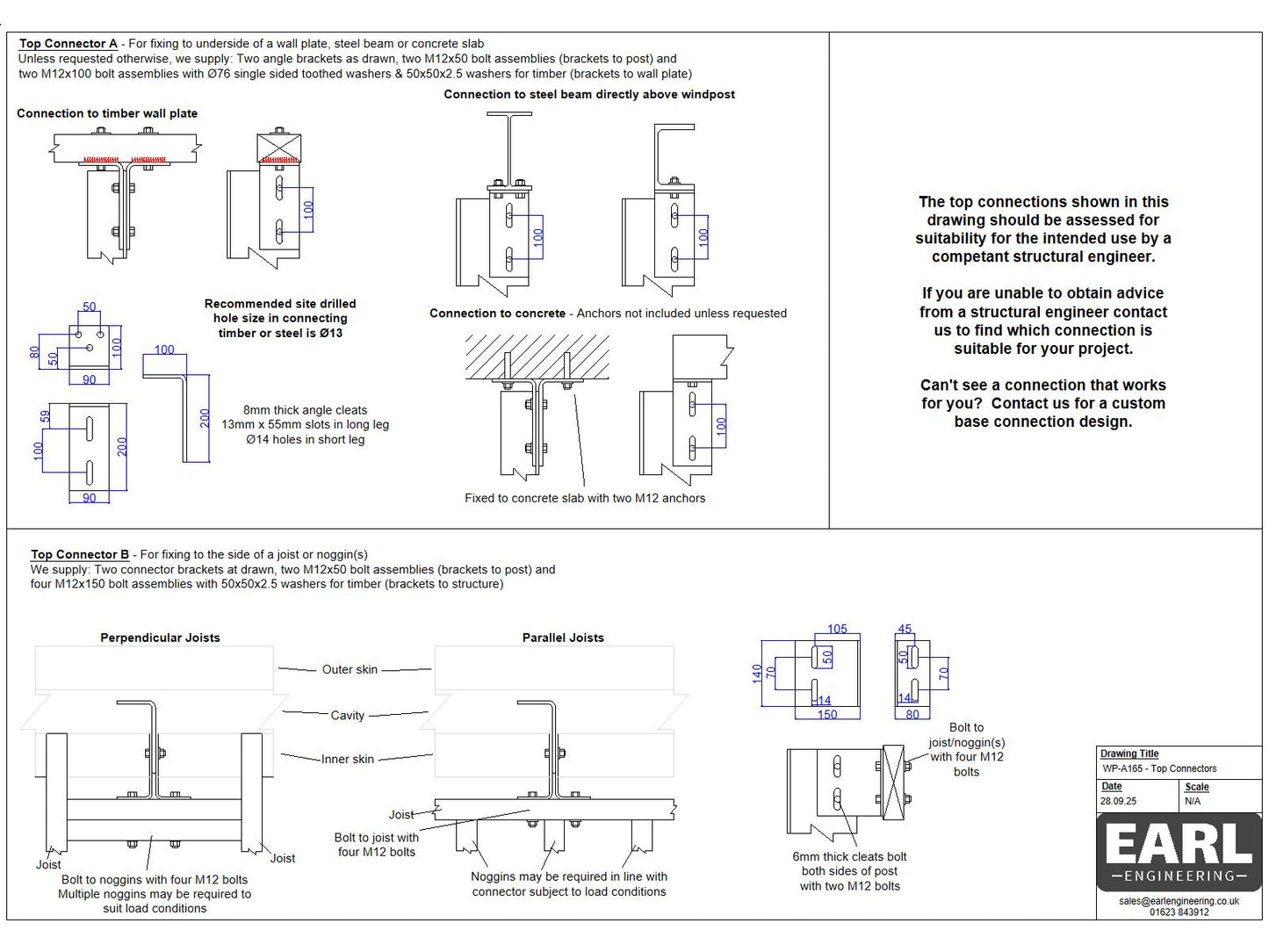

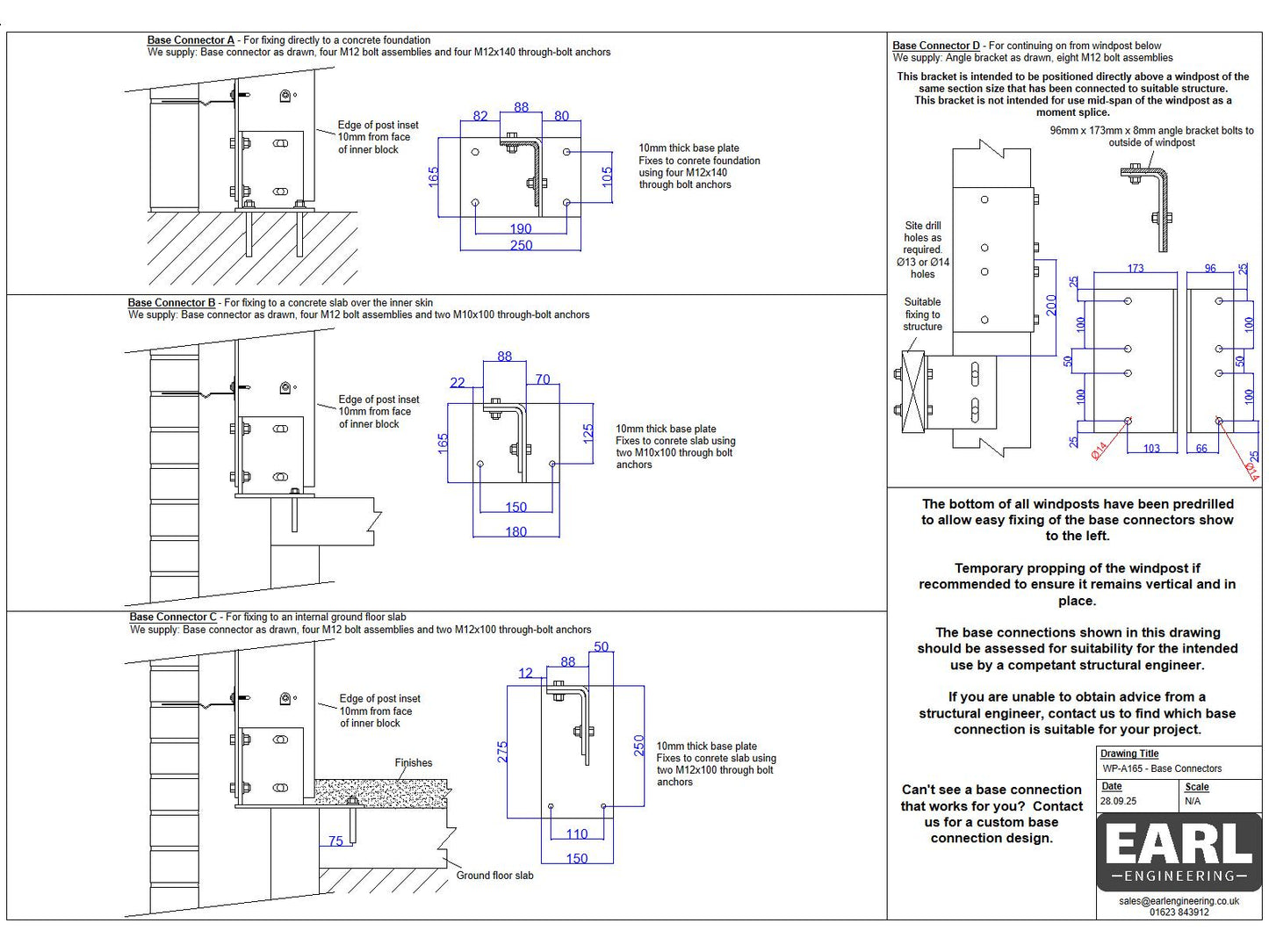

Please view the detail sheets (link below) to help determine which top and bottom connectors are required

Click here for the pdf of this posts details

Please note that our windposts need to be cut and drilled to suit requirements on site.  All cut edges should be treated with cold galvanizing paint or bitumen (eg. Blackjack).

Don't need such a heavy duty windpost?  Click here for our lower cost WP-A130

Unsure if this post is right for you, or don't know which connectors to choose? Contact us with your project details. We can advise what is needed, and provide structural calculations for what we supply.

Please note that wall ties, base connectors and top connectors are seperate items that need adding to basket alongside the windpost.

Overview

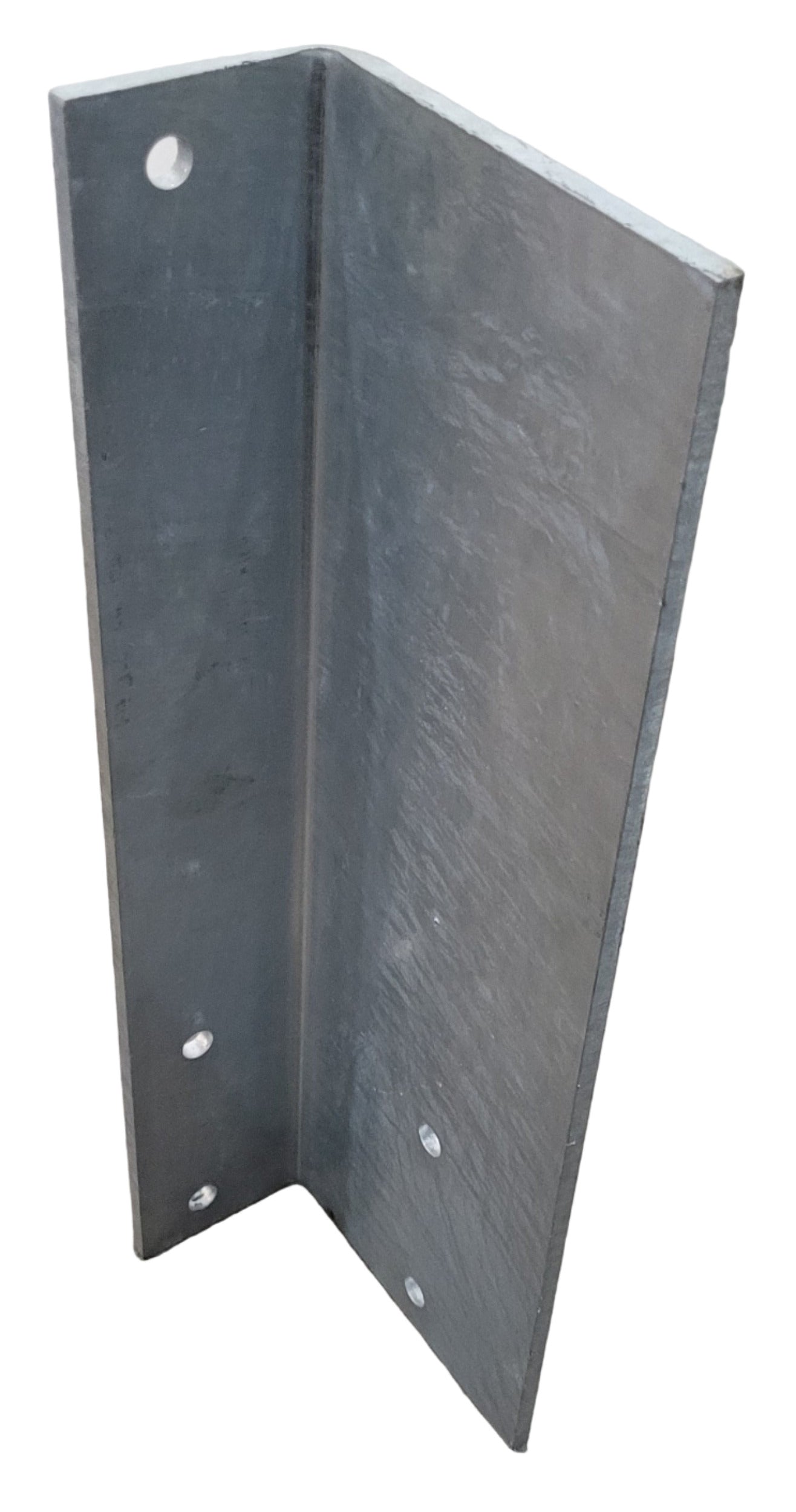

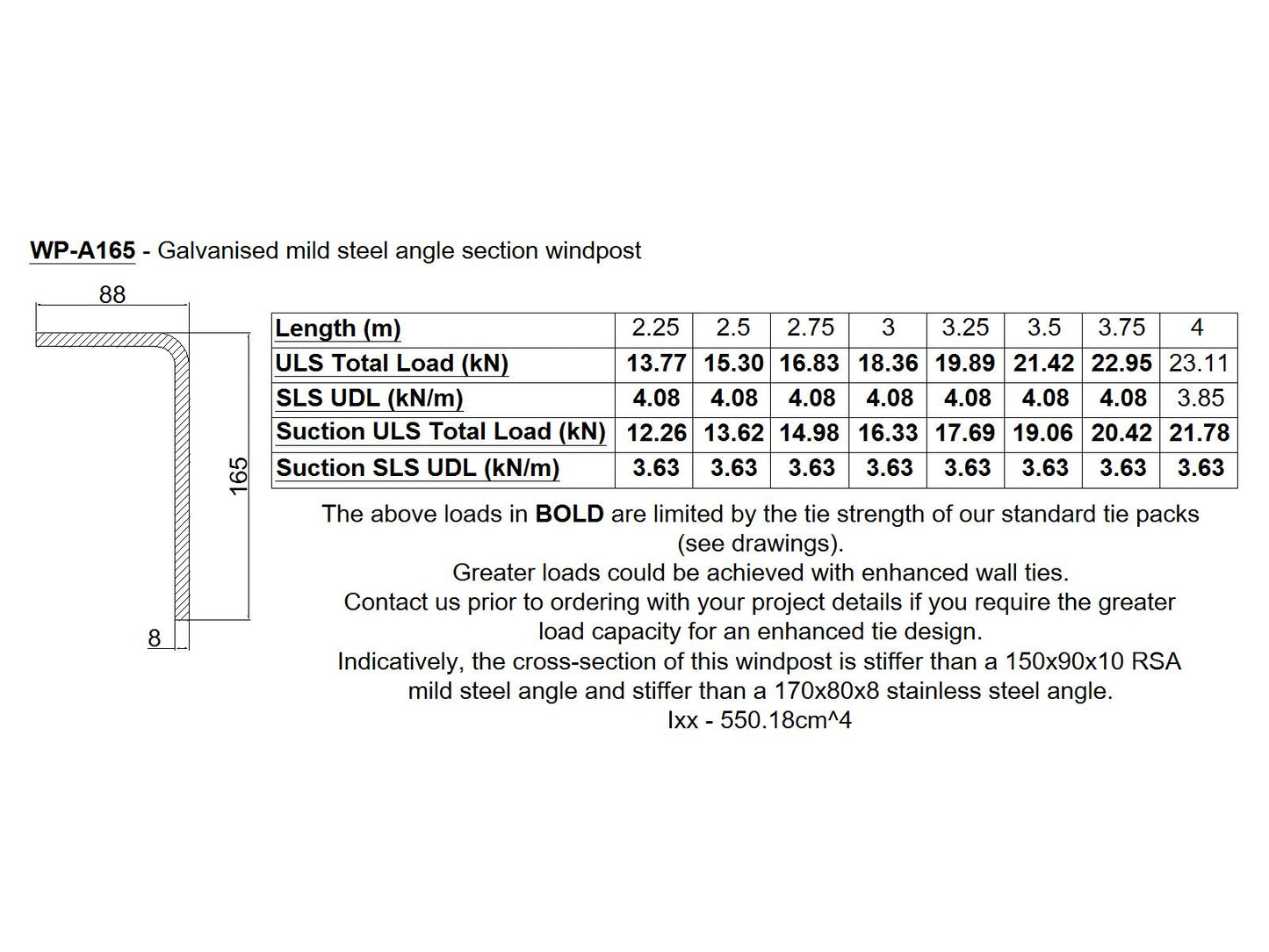

·         This windpost is a 165mm x 88mm angle ‘L’ formed using 8mm thick mild steel.

·         This post is intended to be located within the inner skin and cavity of a cavity wall.

·         All steel has been hot dipped galvanized to ensure longevity.

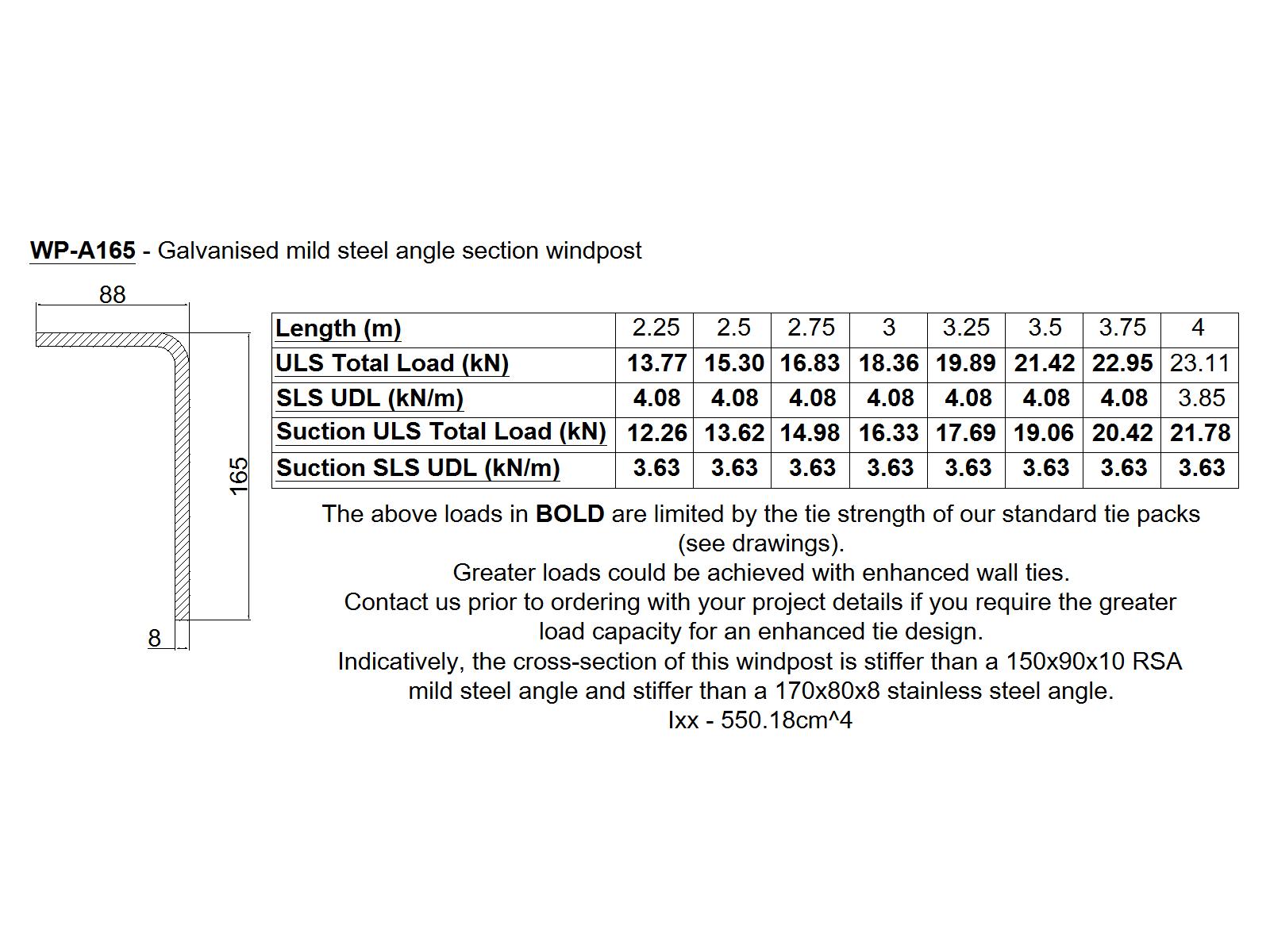

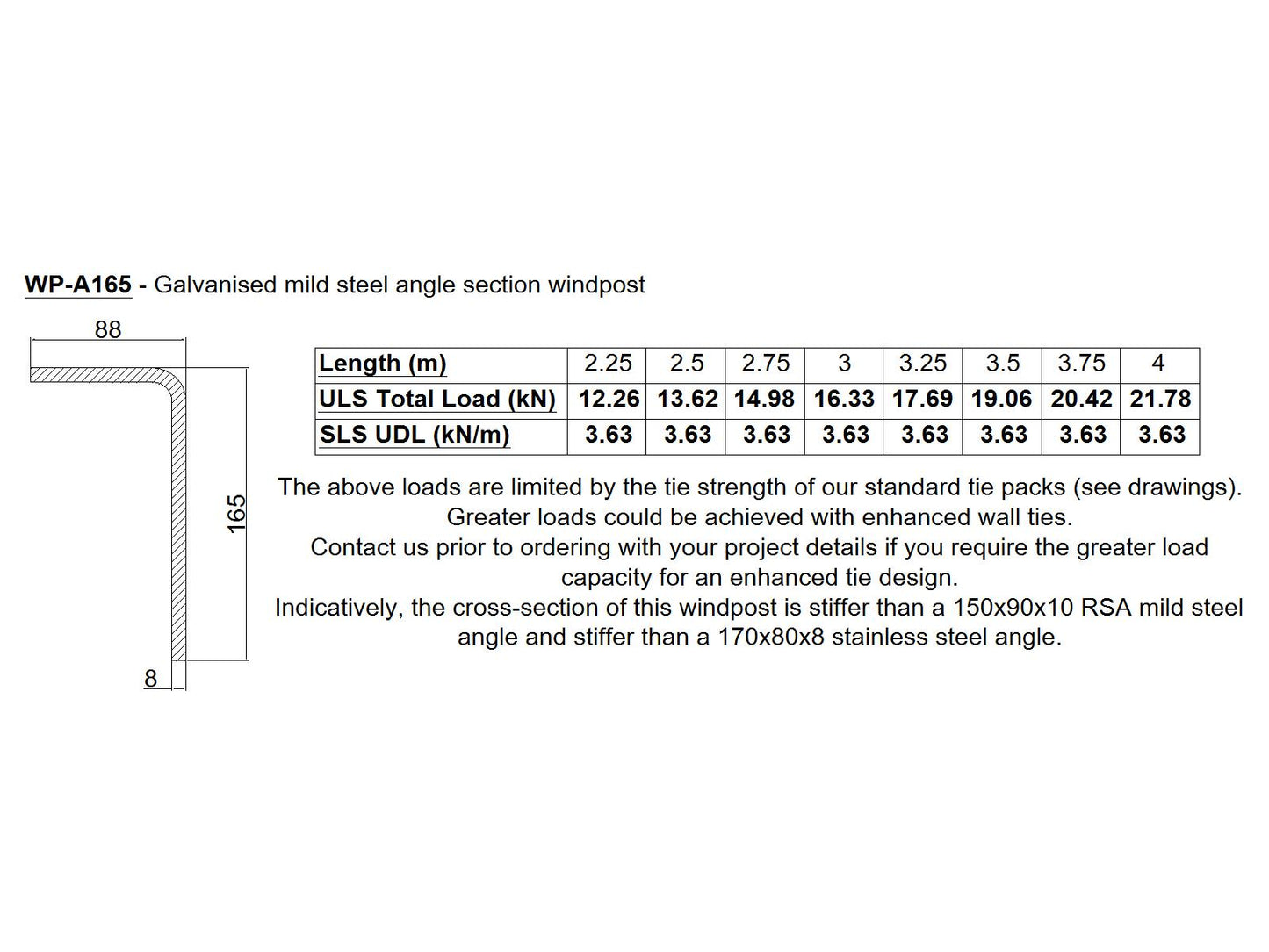

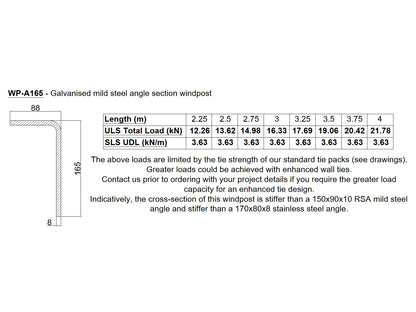

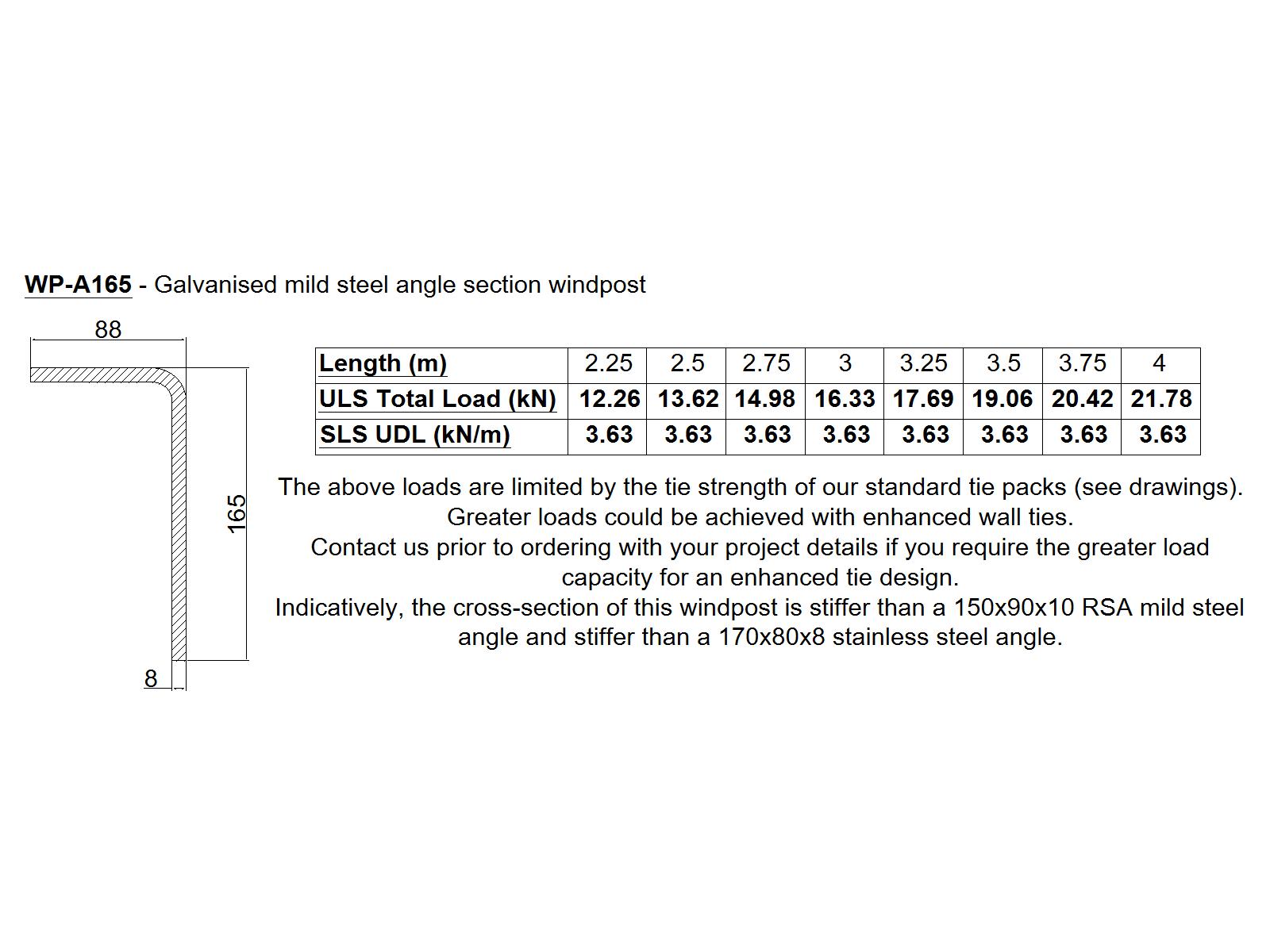

·         The load capacity of this windpost has been determined by our in-house structural engineer, who is also on hand to answer any technical questions you may have.

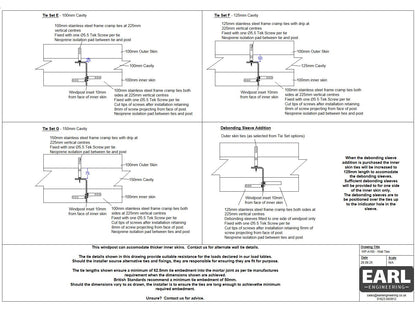

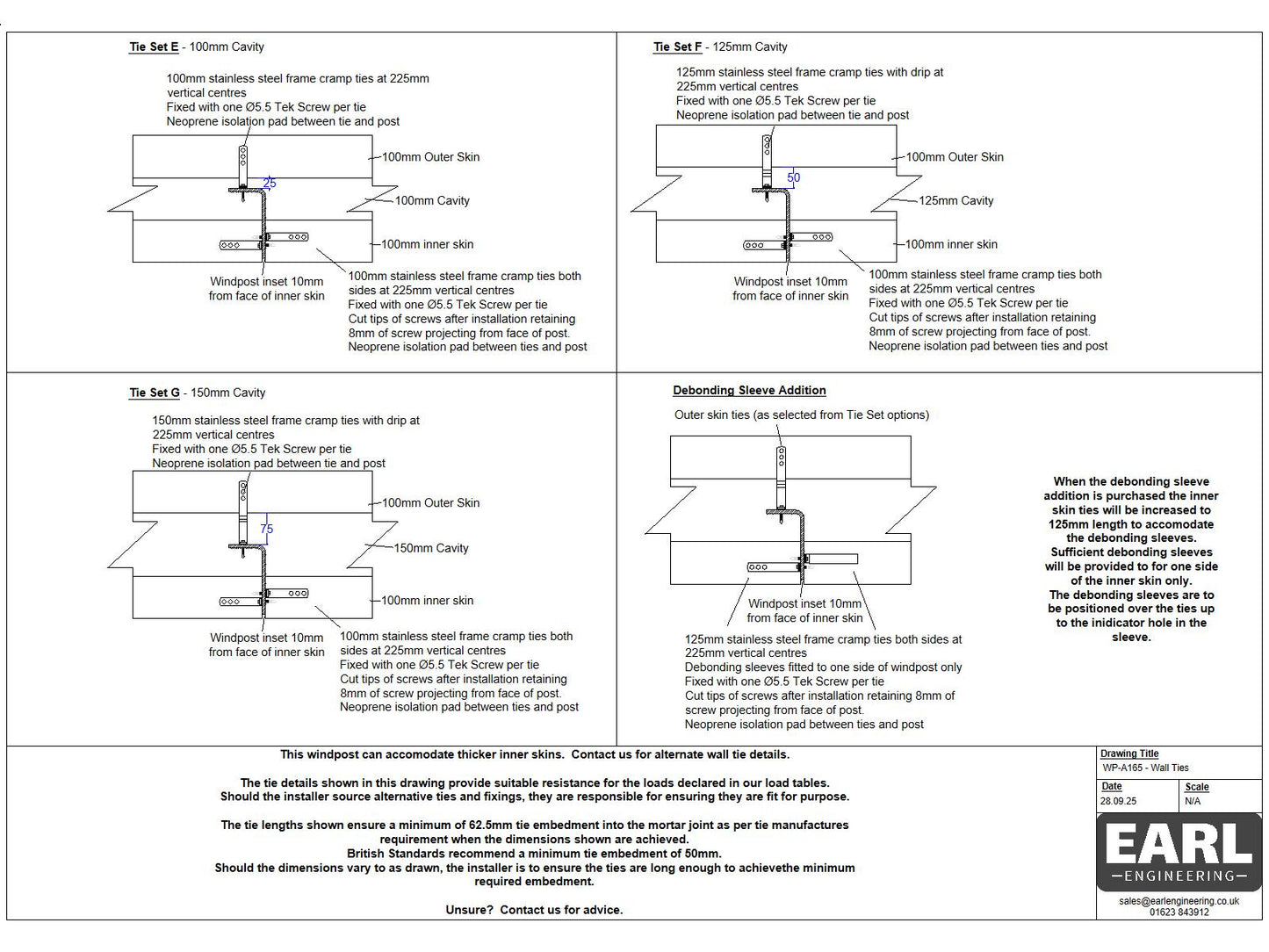

·         This post can be supplied with all frame cramp wall ties, Tek screws and isolation pads required.  See the options in the drop-down box to see which you need.

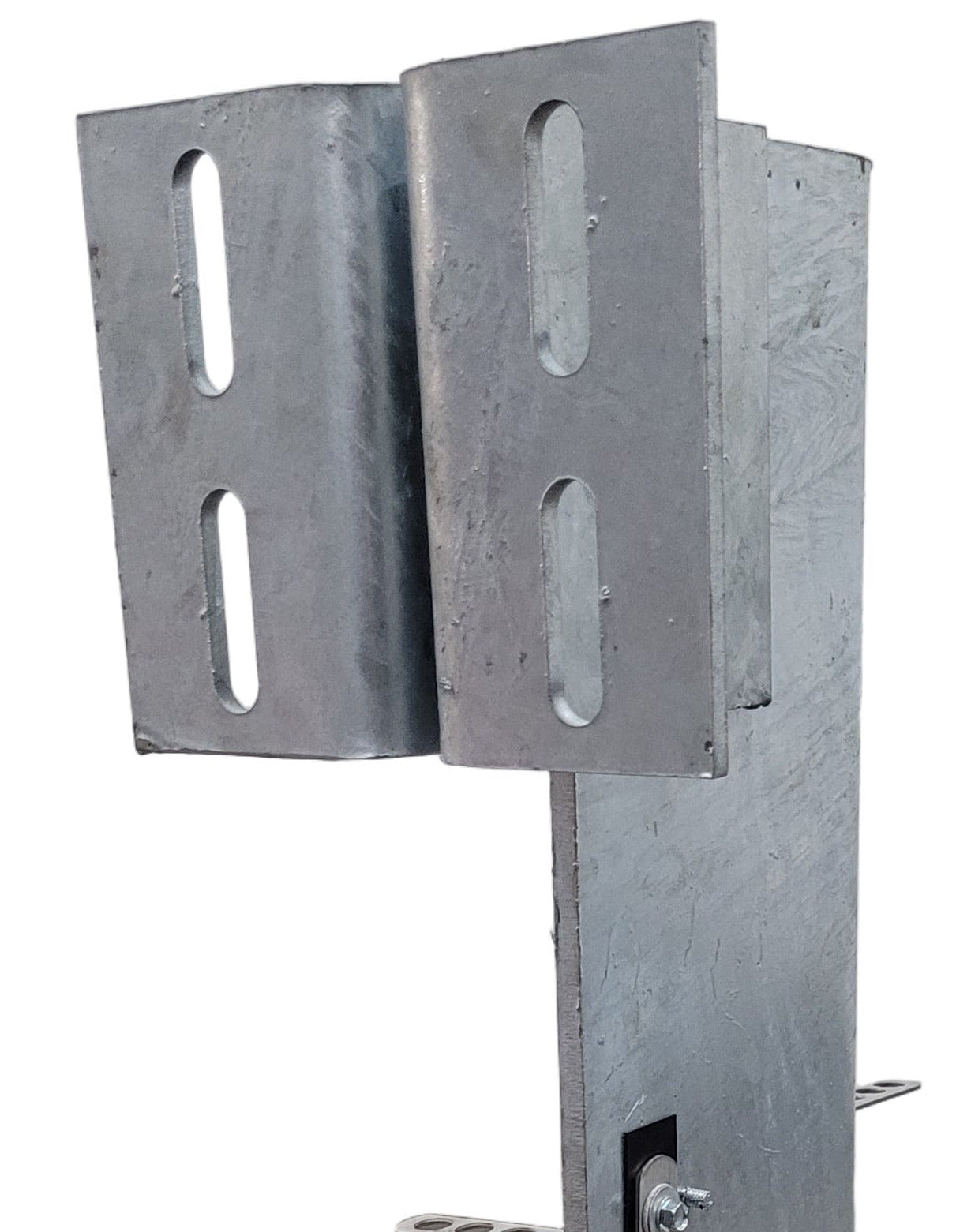

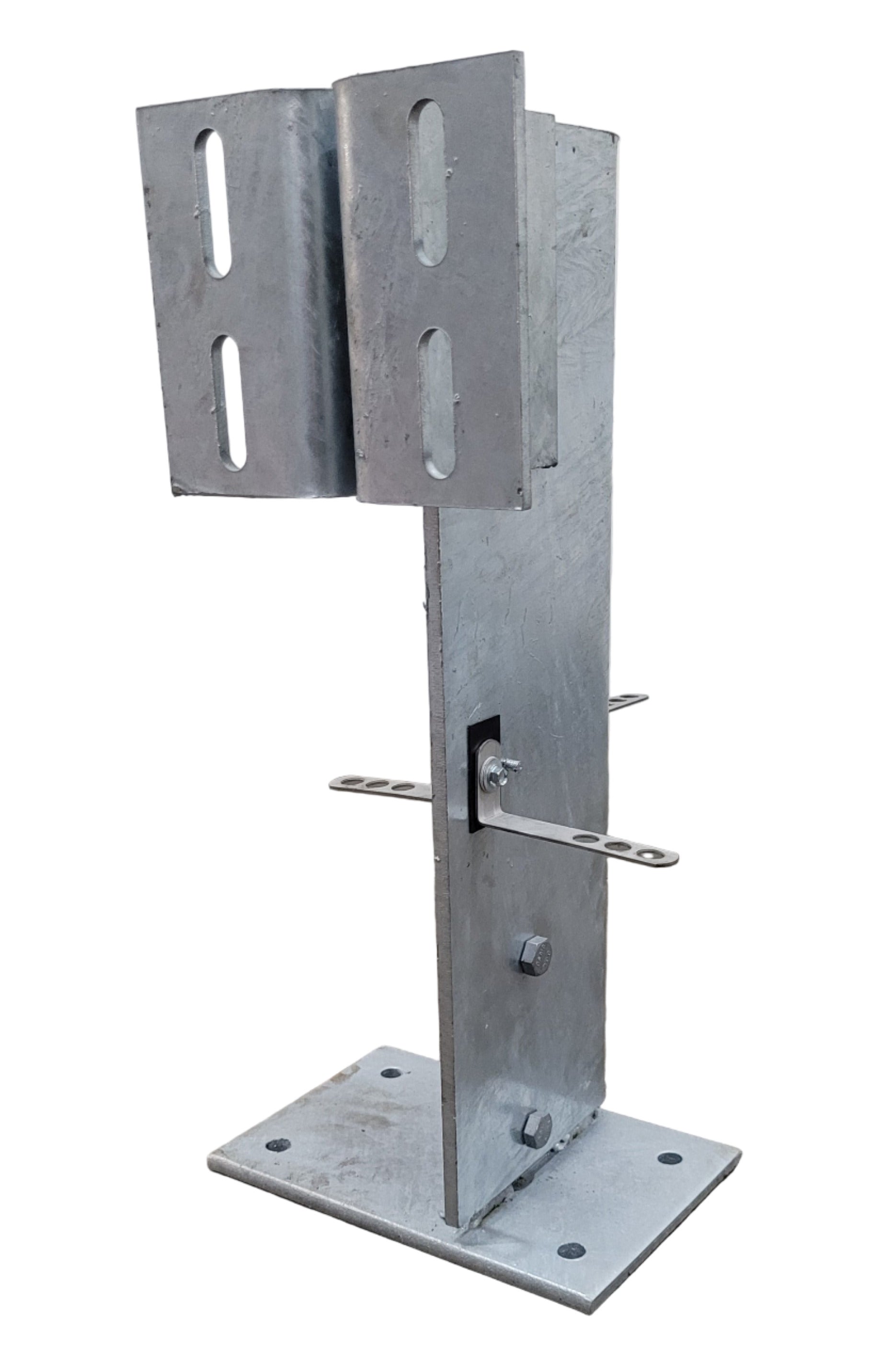

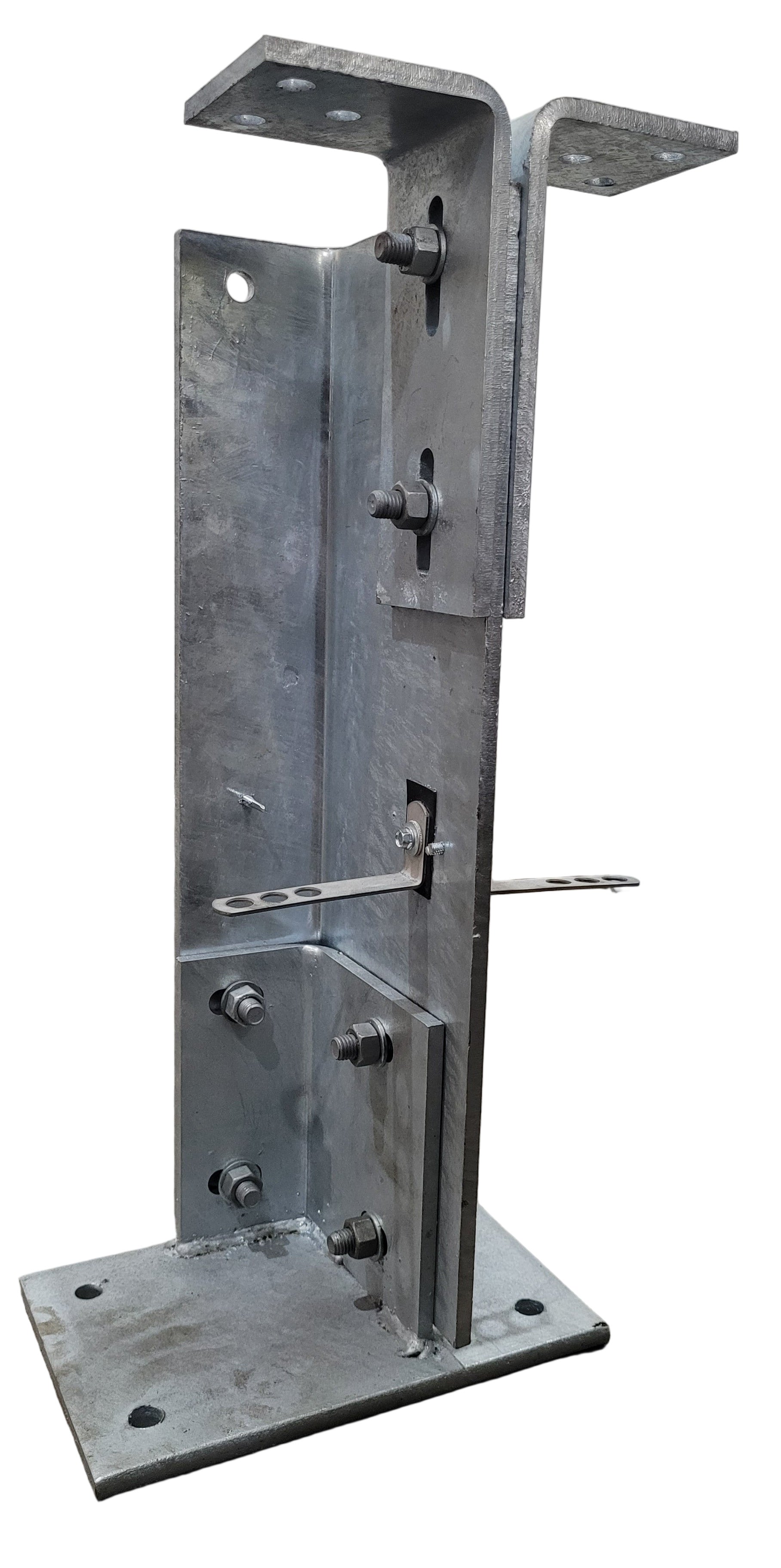

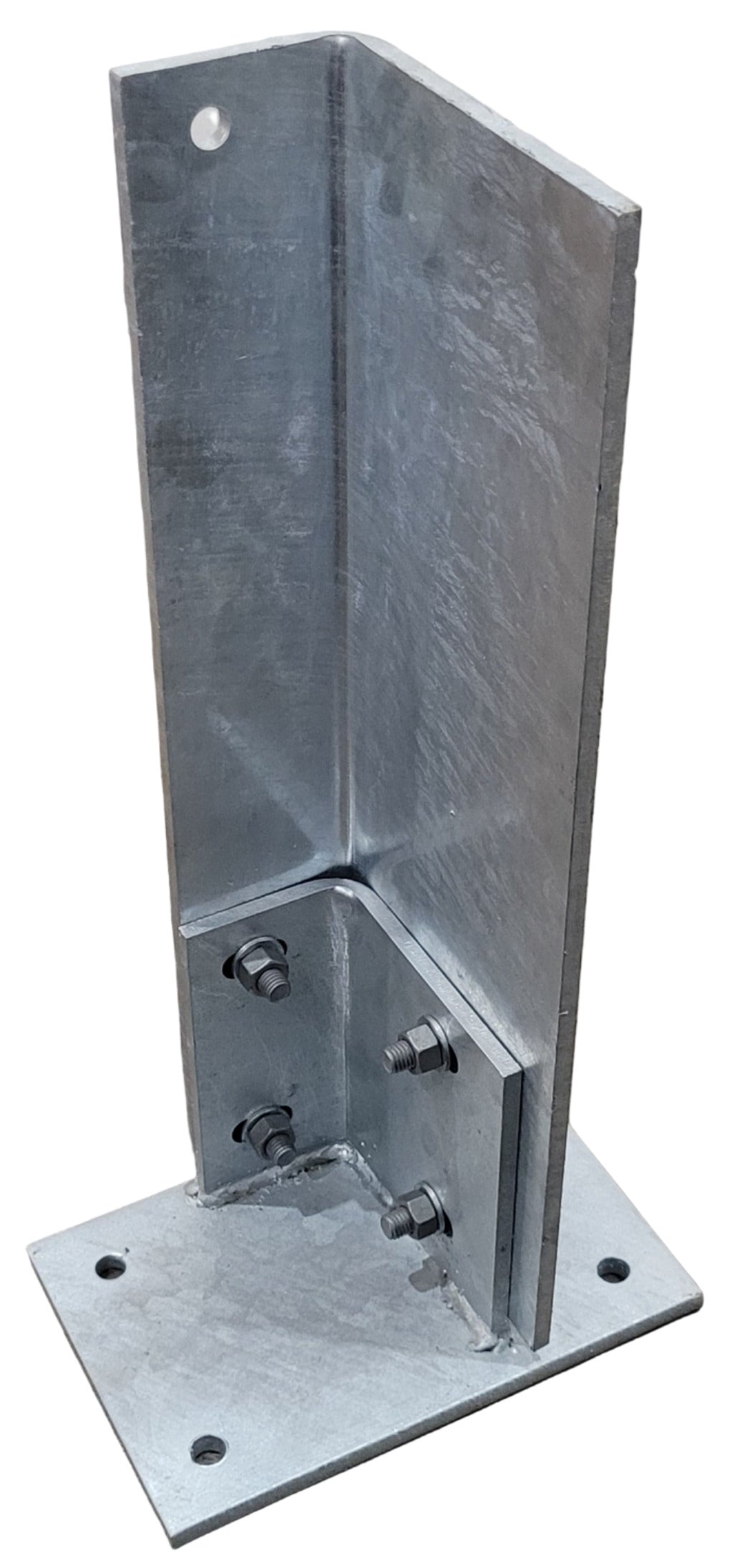

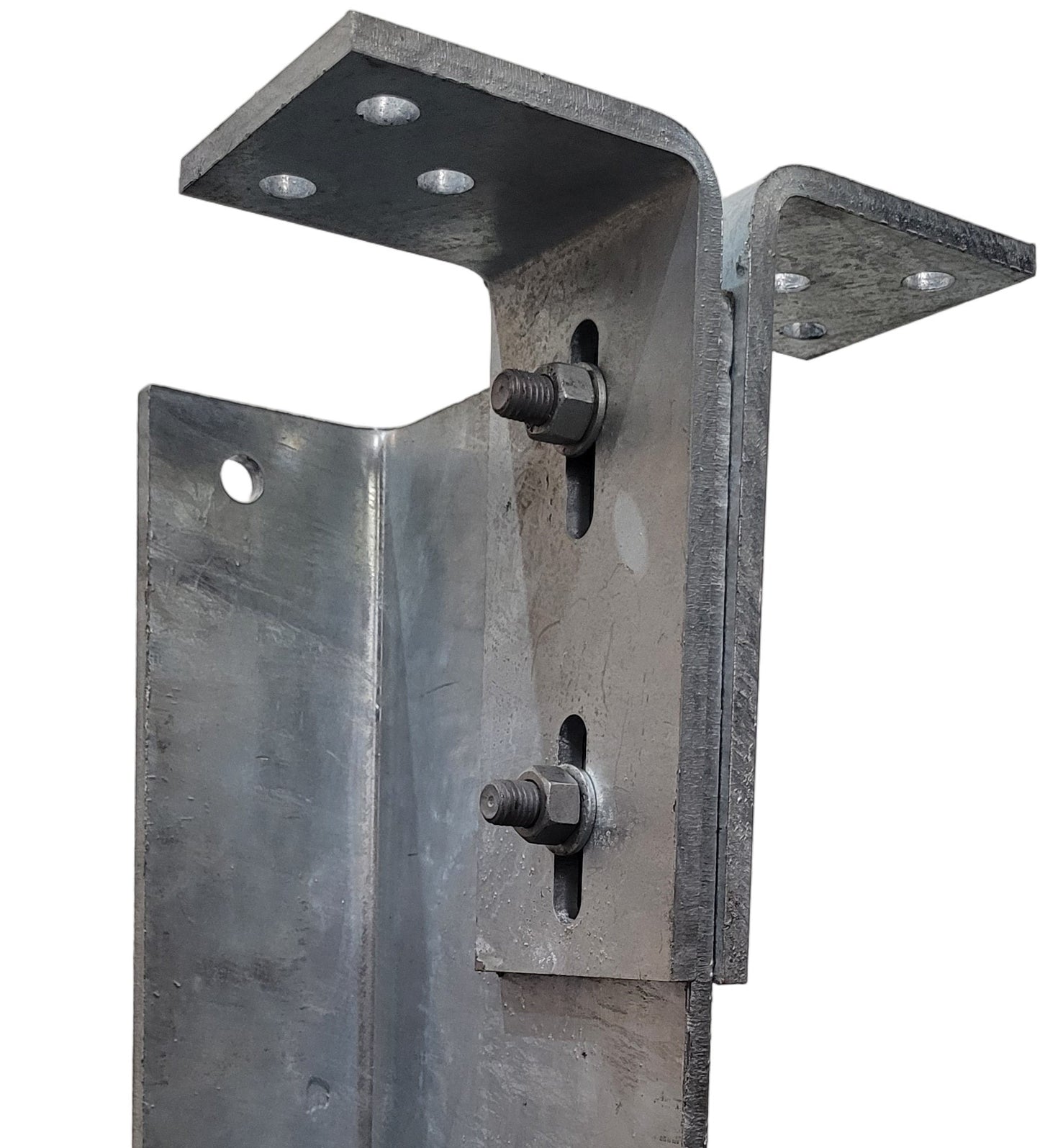

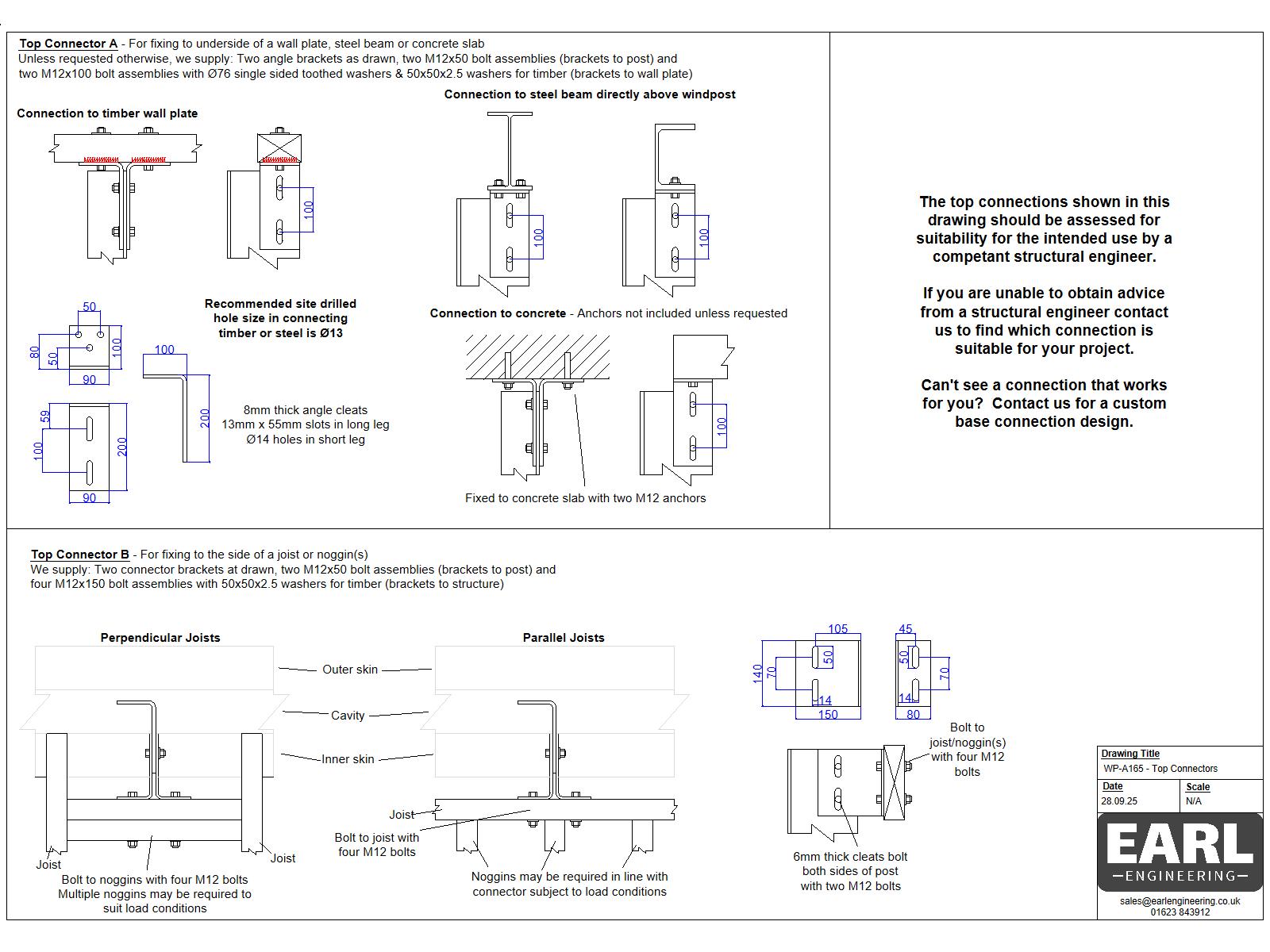

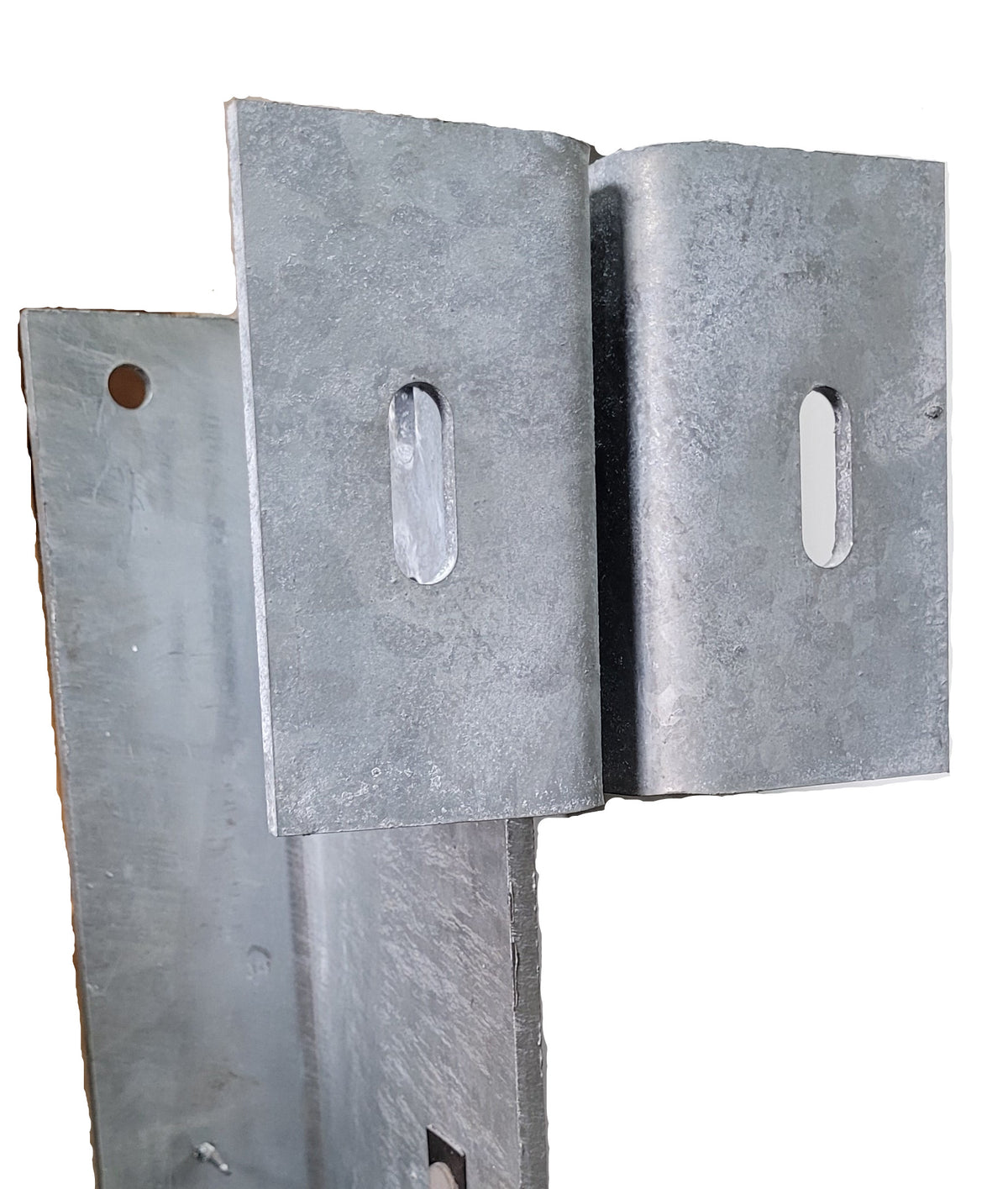

·         A variety of base and top connectors are available to suit most applications.  We can provide bespoke connectors where none of the range apply.

·         This approach to windposts removes the need for accurate measuring and lengthy production times, resulting in a fast delivery and a system that is not prone to costly errors.

·         We supply this post with anchor bolts, and supply connectors with the bolts required.

·         The windpost lenght stated includes the base connector.  Tolerance on post length is -10mm/+25mm.

·         The installer/user of the post is responsible for the safe cutting and drilling procedures of the post, and for supplying any cutting and drilling equipment and consumables required.
